30700-4080

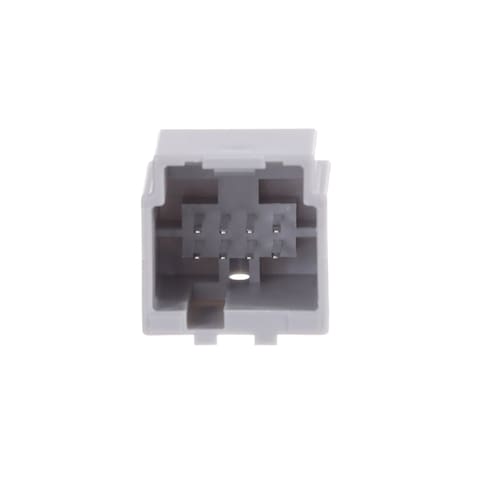

Name: Molex 30700-4080
Brand: Molex
SKU: 538-30700-4080
Price: 38.22 HKD
Availability: InStock

影像僅供參考
請參閱產品規格

Mouser 編號：

538-30700-4080

製造商編號：

30700-4080

製造商：

Molex

說明：

汽車連接器 HDAC64 DR VERT HDR 8 HDR 8 CKT GRAY POL 1

規格書:

30700-4080 規格書

ECAD模型:

下載免費的庫載入器，為ECAD工具轉換此文件。瞭解更多關於 ECAD 型號的資訊。

更多資訊

瞭解更多關於Molex 30700-4080的資訊

庫存量: 192

庫存：: 192 可立即送貨

發生意外錯誤了。請稍後再試。
工廠前置作業時間：: 14 週工廠預計生產時間數量大於所顯示的數量。

輸入數量：

最少： 1 多個： 1

單價:

HK$-.--

總價:

HK$-.--

估計關稅:

Pricing (HKD)

數量	單價	總價
	HK$38.22	HK$38.22
	HK$34.77	HK$347.70
	HK$32.96	HK$824.00
	HK$30.66	HK$3,066.00
	HK$26.80	HK$6,700.00
	HK$26.06	HK$13,030.00
	HK$22.19	HK$19,172.16
	HK$20.63	HK$53,472.96
5,184	報價

.hidden-for-nojs { display: none; } .pull-right-nojs { justify-content: flex-end; }

商品屬性	屬性值	選擇屬性
製造商:	Molex
產品類型:	汽車連接器
RoHS:
產品:	Headers
定位數:	8 Position
間距:	2.54 mm (0.1 in)
性別:	Pin (Male)
安裝風格:	SMD/SMT
終端類型:	Solder
觸點电镀:	Nickel
色彩:	Gray
系列:	30700
封裝:	Tray
應用:	Automotive, Power, Wire-to-Board
品牌:	Molex
聯繫人性別:	Pin (Male)
觸點材料:	Brass
組裝國家:	Not Available
擴散國:	Not Available
原產國:	US
额定电流:	7 A
描述/功能:	H-DAC 64 High Density Automotive Headers
特徵:	Polarization Option 1
外殼材料:	Polystyrene (PS)
最高工作溫度:	+ 100 C
最低工作溫度:	- 40 C
裝配角:	Vertical
排數:	2 Row
產品類型:	Automotive Connectors
原廠包裝數量:	864
子類別:	Automotive Connectors
公司名稱:	H-DAC 64
類型:	PCB Header
額定電壓:	500 VDC
寬度:	0.64 mm
零件號別名:	0307004080
每件重量:	3.860 g

找到產品:

若要顯示類似商品，請選取至少一個核選方塊

至少選中以上一個核取方塊以顯示在此類別中類似的產品。

所選屬性: 0

篩選文檔:

規格書

30700-4080 規格書

Models

PCN

RoHS Certificate (PDF)

CNHTS:: 8536901100
CAHTS:: 8536690020
USHTS:: 8536694040
JPHTS:: 853669000
KRHTS:: 8536691000
TARIC:: 8536693000
MXHTS:: 8536699999
BRHTS:: 85366990
ECCN:: EAR99

Body Electronics Solutions

Molex Body Electronics Solutions create dynamic solutions for unique driving styles and enhance vehicle functionality. Molex Body Electronics products include control modules, cable assemblies, and interconnects that minimize weight and maximize space utilization. Molex Body Electronics are ideal for steering, power distribution, entry systems, and climate control applications.

H-DAC 64 Unsealed Connector System

Molex H-DAC 64 Unsealed Connector System provides space-saving, flexible options for unsealed applications. H-DAC 64 single- and dual-row connectors meet all unsealed USCAR-2 class 2 requirements. A positive lock with an audible click ensures proper mating and a TPA feature increases terminal retention. The single-row connector system consists of vertical and right-angle, four-circuit headers, male and female in-line connectors, and is available in three- to six-circuit configurations. Each terminal in the single-row system is capable of supporting both low-signal and low-power applications up to 10.0A. The dual-row connector system offers six- to 20-circuit configurations, as well as a 24-way hybrid connector. Each dual-row system terminal is capable of supporting both low-signal and low-power applications up to 7.0A.

Transportation Solutions

Molex Transportation Solutions help enable rugged and reliable technology that transforms the future and improves people’s lives. The growth in trends such as connectivity, autonomous driving, in-vehicle experience, and electrification are introducing future-ready applications to everyday vehicles. Molex technology and expertise enable high-speed displays, reduced wiring complexity, and a safer, quieter, more enjoyable driving experience. Applications include sophisticated dashboard displays, fully integrated high-speed in-vehicle networks, enhanced safety devices, and high-performance engines and transmissions.
