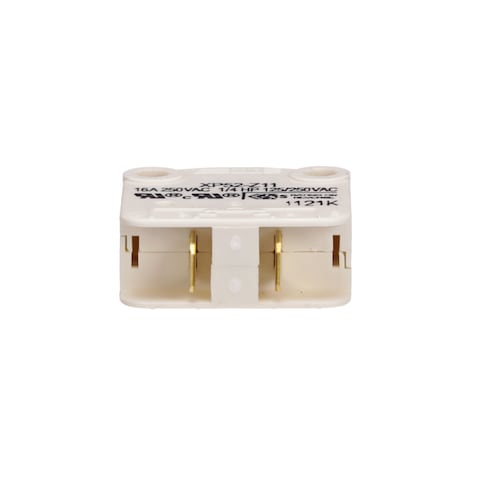

XP52Z11

Saia-Burgess
906-XP52Z11
XP52Z11

製造商:

說明:
微動/押扣開關 Door switch

ECAD模型:
下載免費的庫載入器,為ECAD工具轉換此文件。瞭解更多關於 ECAD 型號的資訊。

庫存量: 999

庫存:
999
可立即送貨
在途量:
1,020
工廠前置作業時間:
18
工廠預計生產時間數量大於所顯示的數量。
最少: 1   多個: 1
單價:
HK$-.--
總價:
HK$-.--
估計關稅:

Pricing (HKD)

數量 單價
總價
HK$52.11 HK$52.11
HK$49.90 HK$499.00
HK$48.74 HK$1,218.50
HK$47.59 HK$2,379.50
HK$46.11 HK$4,611.00
HK$42.09 HK$10,522.50
HK$39.78 HK$19,890.00
HK$25.24 HK$20,192.00

商品屬性 屬性值 選擇屬性
Johnson Electric
產品類型: 微動/押扣開關
RoHS:
XP
Safety Switch
SPDT
Plunger
16 A
400 VAC
3 N
Quick Connect
Chassis Mount
IP40
品牌: Saia-Burgess
組裝國家: Not Available
擴散國: Not Available
原產國: PL
照明: Non-Illuminated
使用壽命: 10000000 Cycles
最高工作溫度: + 140 C
最低工作溫度: - 20 C
產品類型: Snap Action Switches
原廠包裝數量: 800
子類別: Switches
每件重量: 9 g
找到產品:
若要顯示類似商品,請選取至少一個核選方塊
至少選中以上一個核取方塊以顯示在此類別中類似的產品。
所選屬性: 0

此功能需要啟用JavaScript。

CNHTS:
8536500090
USHTS:
8536509040
ECCN:
EAR99

XP Forced Break Switches

Saia-Burgess XP Forced Break Switches feature a forced double break switching capability with a positive-action force break option. The switches offer a >3mm contact gap at full travel with 6.3mm brass faston terminals. The XP series has various mechanisms and actuator options. The switches provide change-over (CO), normally closed (NC), or normally open (NO) mechanisms, as well as a plain plunger, mushroom plunger, and plunger with external spring actuators. The external spring allows for increased reset security. The Saia-Burgess XP Forced Break Switches operate with IP40-rated enclosure protection, a 400VAC max voltage rating, and a 1.8N to 6.5N actuating force range.
