BTH-030-01-L-D-A-K

Name: Samtec BTH-030-01-L-D-A-K
Brand: Samtec
SKU: 200-BTH03001LDAK
Price: 25.89 HKD
Availability: InStock

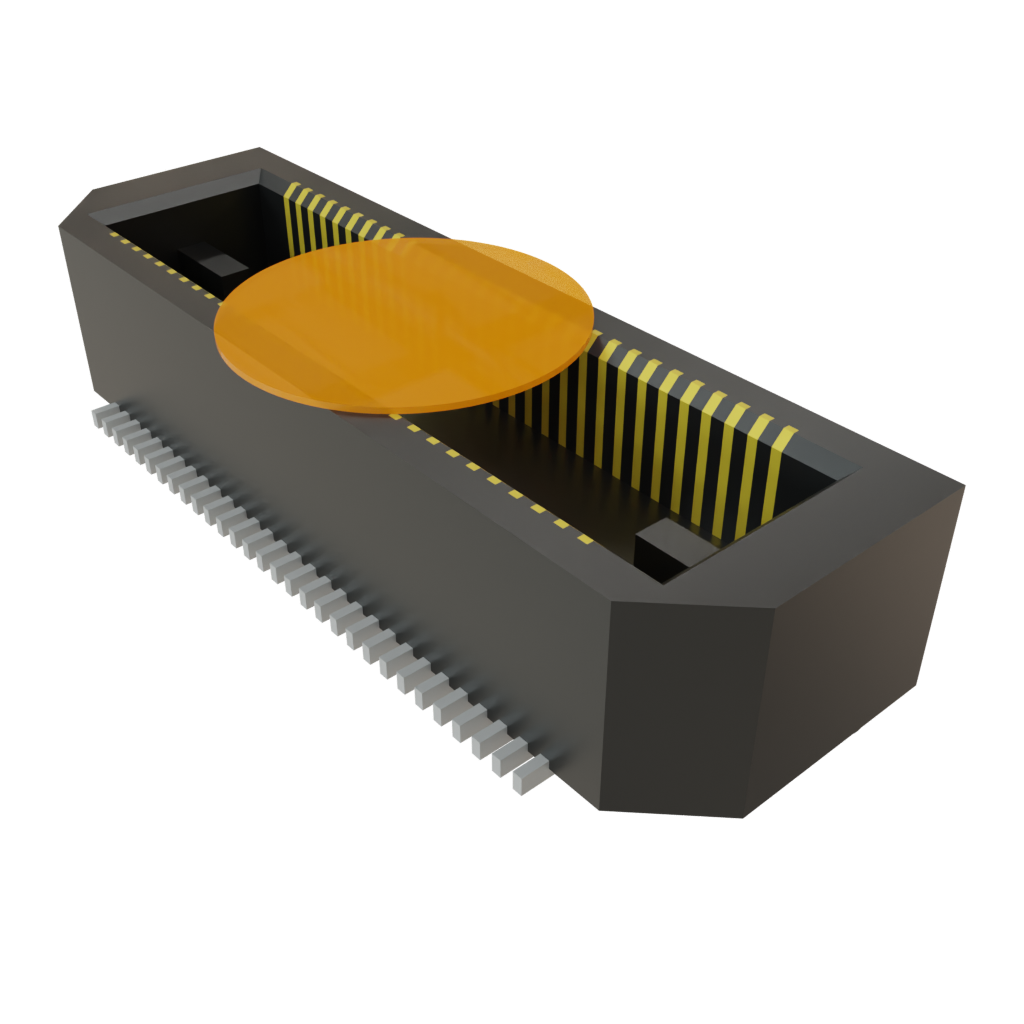

影像僅供參考
請參閱產品規格

Mouser 編號：

200-BTH03001LDAK

製造商編號：

BTH-030-01-L-D-A-K

製造商：

Samtec

說明：

板對板及夾層連接器 0.50MM BASIC BLADE & BEAN STRP

規格書:

BTH-030-01-L-D-A-K 規格書 (PDF)

ECAD模型:

下載免費的庫載入器，為ECAD工具轉換此文件。瞭解更多關於 ECAD 型號的資訊。

更多資訊

瞭解更多關於Samtec BTH-030-01-L-D-A-K的資訊

庫存量: 823

庫存：: 823

可立即送貨

發生意外錯誤了。請稍後再試。
在途量:: 96
工廠前置作業時間：: 8

週工廠預計生產時間數量大於所顯示的數量。

輸入數量：

最少： 1 多個： 1

單價:

HK$-.--

總價:

HK$-.--

估計關稅:

Pricing (HKD)

數量	單價	總價
	HK$25.89	HK$25.89
	HK$24.58	HK$2,359.68
	HK$24.33	HK$4,671.36
	HK$21.29	HK$12,263.04

備用包裝

製造商元件編號:

BTH-030-01-L-D-A-K-TR

包裝:

Reel, Cut Tape, MouseReel

供貨情況:

庫存量

價格:

HK$33.62

最小值:

.hidden-for-nojs { display: none; } .pull-right-nojs { justify-content: flex-end; }

商品屬性	屬性值	選擇屬性
製造商:	Samtec
產品類型:	板對板及夾層連接器
RoHS:
產品:	Headers
定位數:	60 Position
間距:	0.5 mm (0.02 in)
排數:	2 Row
終端類型:	Solder Pin
裝配角:	Vertical
堆疊高度:	5 mm
额定电流:	2 A
額定電壓:	175 VAC
最低工作溫度:	- 55 C
最高工作溫度:	+ 125 C
觸點电镀:	Gold
觸點材料:	Phosphor Bronze
外殼材料:	Liquid Crystal Polymer (LCP)
系列:	BTH
封裝:	Tray
品牌:	Samtec
組裝國家:	Not Available
擴散國:	Not Available
原產國:	CR
易燃性等級:	UL 94 V-0
安裝風格:	Mounting Peg
產品類型:	Board to Board & Mezzanine Connectors
原廠包裝數量:	96
子類別:	Board to Board & Mezzanine Connectors
每件重量:	378 mg

找到產品:

若要顯示類似商品，請選取至少一個核選方塊

至少選中以上一個核取方塊以顯示在此類別中類似的產品。

所選屬性: 0

篩選文檔:

Specification Sheets

Technical Resources

Test Report (PDF)

CNHTS:: 8536901900
CAHTS:: 8536690020
USHTS:: 8536694040
JPHTS:: 853669000
KRHTS:: 8536691000
TARIC:: 8536693000
MXHTS:: 8536699999
BRHTS:: 85366990
ECCN:: EAR99

Ultra Micro Interconnects

Samtec Ultra Micro Interconnects offer a stack height as low as 2.31mm and pitches of 0.4mm, 0.5mm, 0.635mm, and 0.8mm. One to four rows are available, and termination styles include solder, solder balls, and solder pin. Samtec Ultra Micro Interconnects are available in several mounting angles, including horizontal, right, straight, and vertical. The product lineup features connectors, headers, receptacles, sockets, and hermaphroditic connectors.

BSH / BTH Basic Blade & Beam Connectors

Samtec BSH / BTH Basic Blade and Beam Connectors are standard, right-angle, or edge-mount sockets and terminal strips with a 0.0197" (0.50mm) pitch. The connectors offer a 5mm stack height, standard alignment pin feature, and cost-effective gold plating. Options include tape-and-reel packaging, a dual-row design ("-EM" suffix), and a standard weld tab feature ("-RA" suffix). Samtec BSH / BTH Basic Blade and Beam Connectors have six standard positions and up to 300 I/O pins, while the "-EM" and "-RA" variants have three standard positions and up to 180 I/O pins. The BSH and BTH series are mateable with each other.

Flexible Stacking Connectors

Samtec Flex Stacking Board Connectors feature a large variety of board-to-board connectors with design flexibility. These Samtec board-to-board connector systems are available in a variety of pitches, densities, stack heights, orientations, and other standard or modified options, making it easy to find the right connector for any application. Flex-Stack options include one-piece, low profile pass-through, elevated, hermaphroditic, shrouded, coplanar, parallel, and perpendicular. Post heights are adjustable in increments of 0.005” (0.13mm).
