ERF8-030-05.0-L-DV-K-TR

Name: Samtec ERF8-030-05.0-L-DV-K-TR
Brand: Samtec
SKU: 200-ERF8030050LDVKTR
Price: 45.46 HKD
Availability: InStock

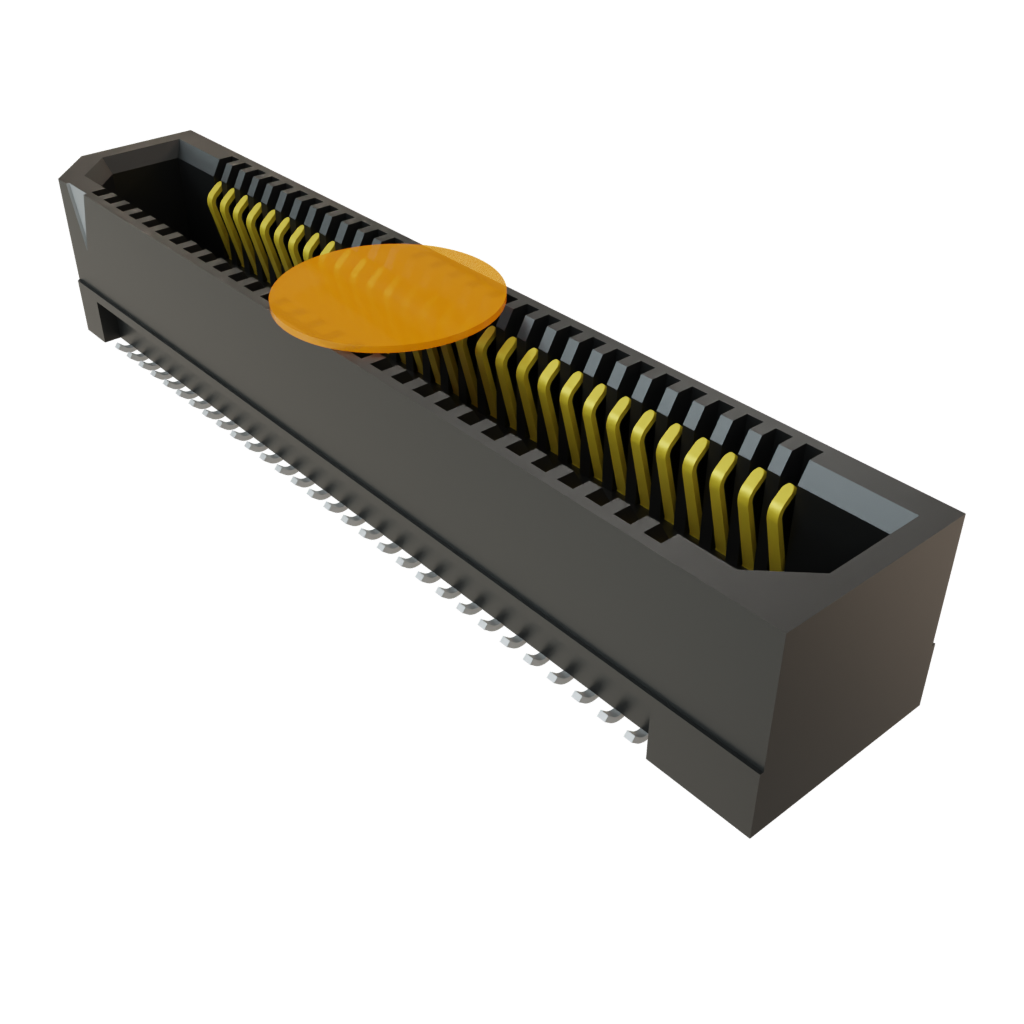

影像僅供參考
請參閱產品規格

Mouser 編號：

200-ERF8030050LDVKTR

製造商編號：

ERF8-030-05.0-L-DV-K-TR

製造商：

Samtec

說明：

板對板及夾層連接器 0.80 mm Edge Rate Rugged High Speed Socket

規格書:

ERF8-030-05.0-L-DV-K-TR 規格書 (PDF)

ECAD模型:

下載免費的庫載入器，為ECAD工具轉換此文件。瞭解更多關於 ECAD 型號的資訊。

更多資訊

瞭解更多關於Samtec ERF8-030-05.0-L-DV-K-TR的資訊

庫存量: 1,668

庫存：: 1,668

可立即送貨

發生意外錯誤了。請稍後再試。
在途量:: 375
工廠前置作業時間：: 1

週工廠預計生產時間數量大於所顯示的數量。

輸入數量：

最少： 1 多個： 1

單價:

HK$-.--

總價:

HK$-.--

估計關稅:

Pricing (HKD)

數量	單價	總價
	HK$45.46	HK$45.46
	HK$39.13	HK$391.30
	HK$36.66	HK$916.50
	HK$34.94	HK$1,747.00
	HK$34.11	HK$3,411.00
完整捲（訂購多個375）
	HK$34.11	HK$12,791.25
	HK$30.50	HK$22,875.00
	HK$29.43	HK$55,181.25

.hidden-for-nojs { display: none; } .pull-right-nojs { justify-content: flex-end; }

商品屬性	屬性值	選擇屬性
製造商:	Samtec
產品類型:	板對板及夾層連接器
RoHS:
產品:	Sockets
定位數:	60 Position
間距:	0.8 mm (0.031 in)
排數:	2 Row
終端類型:	Solder
裝配角:	Vertical
堆疊高度:	7 mm, 8 mm, 10 mm, 13 mm, 14 mm
最高數據率:	56 Gbps
最低工作溫度:	- 55 C
最高工作溫度:	+ 125 C
觸點电镀:	Gold
觸點材料:	Phosphor Bronze
外殼材料:	Liquid Crystal Polymer (LCP)
系列:	ERF8
封裝:	Reel
封裝:	Cut Tape
品牌:	Samtec
組裝國家:	Not Available
擴散國:	Not Available
原產國:	MY
易燃性等級:	UL 94 V-0
安裝風格:	SMD/SMT
產品類型:	Board to Board & Mezzanine Connectors
原廠包裝數量:	375
子類別:	Board to Board & Mezzanine Connectors
公司名稱:	Edge Rate

找到產品:

若要顯示類似商品，請選取至少一個核選方塊

至少選中以上一個核取方塊以顯示在此類別中類似的產品。

所選屬性: 0

篩選文檔:

Specification Sheets

Technical Resources

Test Report (PDF)

CNHTS:: 8536901100
CAHTS:: 8536690020
USHTS:: 8536694040
JPHTS:: 853669000
KRHTS:: 8536691000
TARIC:: 8536693000
MXHTS:: 8536699999
BRHTS:: 85366990
ECCN:: EAR99

Edge Rate® High-Speed Rugged High-Cycle Connectors

Samtec Edge Rate® High-speed Rugged High-Cycle Connectors are optimized for signal integrity performance. These connectors feature a smooth milled contact surface for mating instead of stamped contact that mates on a cut edge. This mating surface reduces the wear tracks on the contact and increases the durability and cycle life of the contact system. Samtec Edge Rate High-speed Rugged High-Cycle Connectors offer low insertion and withdrawal forces and allow the connectors to be zippered when unmating.

Flexible Stacking Connectors

Samtec Flex Stacking Board Connectors feature a large variety of board-to-board connectors with design flexibility. These Samtec board-to-board connector systems are available in a variety of pitches, densities, stack heights, orientations, and other standard or modified options, making it easy to find the right connector for any application. Flex-Stack options include one-piece, low profile pass-through, elevated, hermaphroditic, shrouded, coplanar, parallel, and perpendicular. Post heights are adjustable in increments of 0.005” (0.13mm).

ERM8 & ERF8 Edge Rate® Rugged High-Speed Strips

Samtec ERM8 and ERF8 Edge Rate® Rugged High-Speed Strips are 0.8mm pitch terminal and socket strips optimized for signal integrity performance. These strips feature a smooth broad milled contact surface for increased wear life. The ERM8 and ERF8 strips offer up to 200 positions with a stack height from 7mm to 16mm. These connectors are available in edge-mount and right-angle versions. The ERM8 rugged high-speed headers feature a hot-swap option and are designed for rugged micro-pitch applications. Samtec ERF8 rugged high-speed sockets improve "zippered" unmating with robust Edge Rate contacts. The ERM8 and ERF8 strips offer high-speed channel performance of up to 56Gbps.

Rugged SI System Connectors for Embedded Vision

Samtec Rugged SI System Connectors for Embedded Vision are available in a variety of pitches, including 0.5mm, 0.635mm, and 0.8mm. The number of positions ranges from 10 to 200, while the mounting angles include straight, right, and vertical. Samtec Rugged SI System Connectors for Embedded Vision offer stack heights as low as 5mm. The product portfolio features headers, sockets, hermaphroditic connectors, receptacles, and connectors. Termination styles include solder and solder pin.

Rugged SI System Connectors for Automation

Samtec Rugged SI System Connectors for Automation are available in a range of stack heights, termination styles, and the number of rows. The mounting angles include right, straight, and vertical. The number of positions ranges from 10 to 200. Samtec Rugged SI System Connectors for Automation come in a variety of pitches, including 0.5mm, 0.635mm, and 0.8mm. The product portfolio includes connectors, headers, receptacles, sockets, and hermaphroditic connectors.
