FTSH-120-01-F-DV

Name: Samtec FTSH-120-01-F-DV
Brand: Samtec
SKU: 200-FTSH12001FDV
Price: 34.85 HKD
Availability: InStock

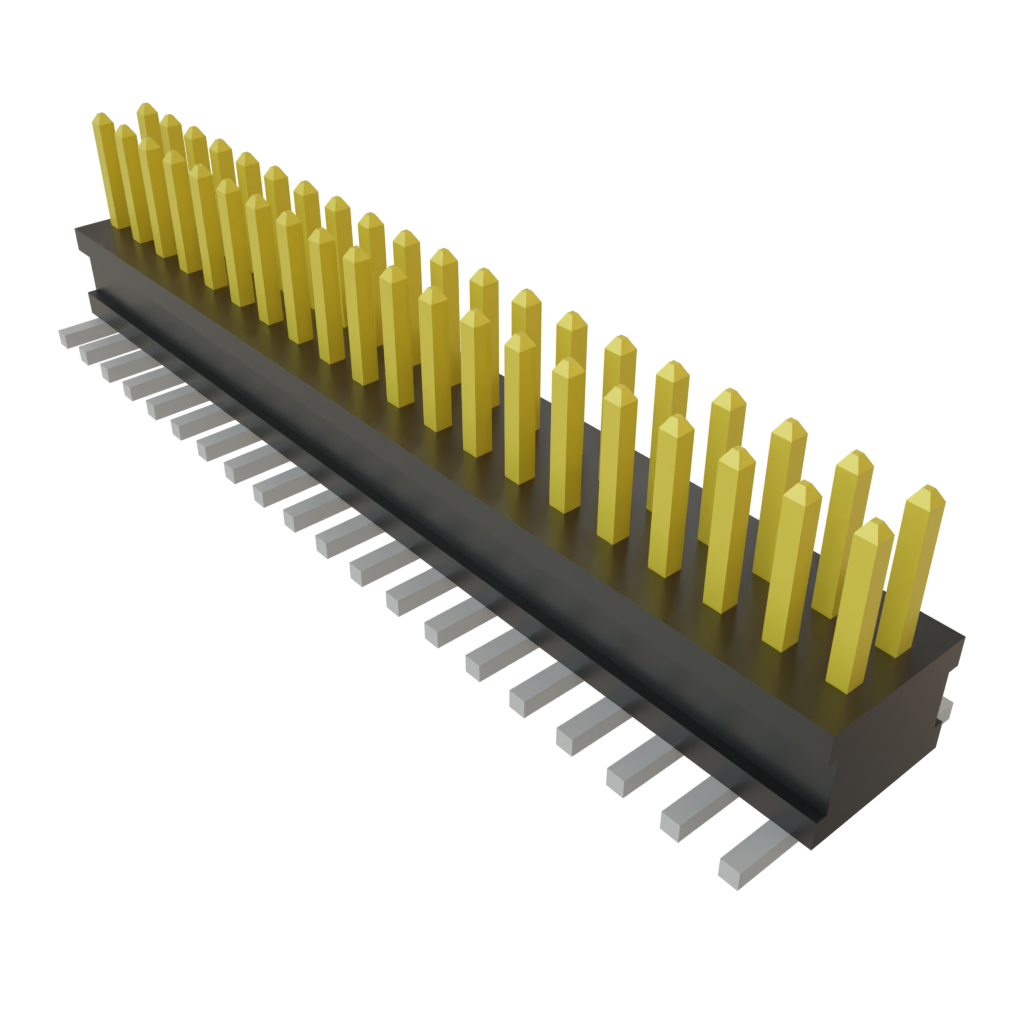

影像僅供參考
請參閱產品規格

Mouser 編號：

200-FTSH12001FDV

製造商編號：

FTSH-120-01-F-DV

製造商：

Samtec

說明：

集管和線殼 High Reliability Header Strips

規格書:

FTSH-120-01-F-DV 規格書 (PDF)

ECAD模型:

下載免費的庫載入器，為ECAD工具轉換此文件。瞭解更多關於 ECAD 型號的資訊。

更多資訊

瞭解更多關於Samtec FTSH-120-01-F-DV的資訊

庫存量: 91

庫存：: 91 可立即送貨

發生意外錯誤了。請稍後再試。
工廠前置作業時間：: 2 週工廠預計生產時間數量大於所顯示的數量。

輸入數量：

最少： 1 多個： 1

單價:

HK$-.--

總價:

HK$-.--

估計關稅:

Pricing (HKD)

數量	單價	總價
	HK$34.85	HK$34.85
	HK$33.37	HK$767.51
	HK$28.85	HK$1,327.10
	HK$26.39	HK$3,034.85
	HK$20.80	HK$10,524.80
	HK$19.07	HK$19,298.84
	HK$16.52	HK$41,415.64
	HK$12.49	HK$62,624.86

.hidden-for-nojs { display: none; } .pull-right-nojs { justify-content: flex-end; }

商品屬性	屬性值	選擇屬性
製造商:	Samtec
產品類型:	集管和線殼
RoHS:
產品:	Headers
類型:	Pin Strip
定位數:	40 Position
間距:	1.27 mm (0.05 in)
排數:	2 Row
行距:	1.27 mm (0.05 in)
安裝風格:	SMD/SMT
終端類型:	Solder
裝配角:	Straight
聯繫人性別:	Pin (Male)
觸點电镀:	Gold
配接柱長度:	3.05 mm (0.12 in)
系列:	FTSH
應用:	Board-to-Board
最低工作溫度:	- 55 C
最高工作溫度:	+ 125 C
封裝:	Tube
品牌:	Samtec
觸點材料:	Phosphor Bronze
組裝國家:	Not Available
擴散國:	Not Available
原產國:	VN
额定电流:	3.4 A
易燃性等級:	UL 94 V-0
外殼顏色:	Black
外殼材料:	Liquid Crystal Polymer (LCP)
產品類型:	Headers & Wire Housings
原廠包裝數量:	23
子類別:	Headers & Wire Housings
每件重量:	246 mg

找到產品:

若要顯示類似商品，請選取至少一個核選方塊

至少選中以上一個核取方塊以顯示在此類別中類似的產品。

所選屬性: 0

篩選文檔:

Specification Sheets

Technical Resources

Test Report (PDF)

CNHTS:: 8536901100
CAHTS:: 8536690020
USHTS:: 8536694040
JPHTS:: 853669000
KRHTS:: 8536691000
TARIC:: 8536693000
MXHTS:: 8536699999
BRHTS:: 85366990
ECCN:: EAR99

FTSH .050" (1.27mm) Micro Terminal Headers

Samtec FTSH .050" (1.27mm) Micro Terminal Headers feature a variety of standard options. These options include a choice of surface mount, vertical or horizontal orientations, through-hole or mixed technology tails, and a variety of post heights. Additionally, Samtec FTSH terminal headers provide users with the choices of end shrouds and ejector shrouds for alignment or blind mating with polarization and keying options. These FTSH SMT Terminal strips mate with FFSD / FFTP Series cable assemblies, CLP Series micro socket strips, and FLE Series socket strips.
