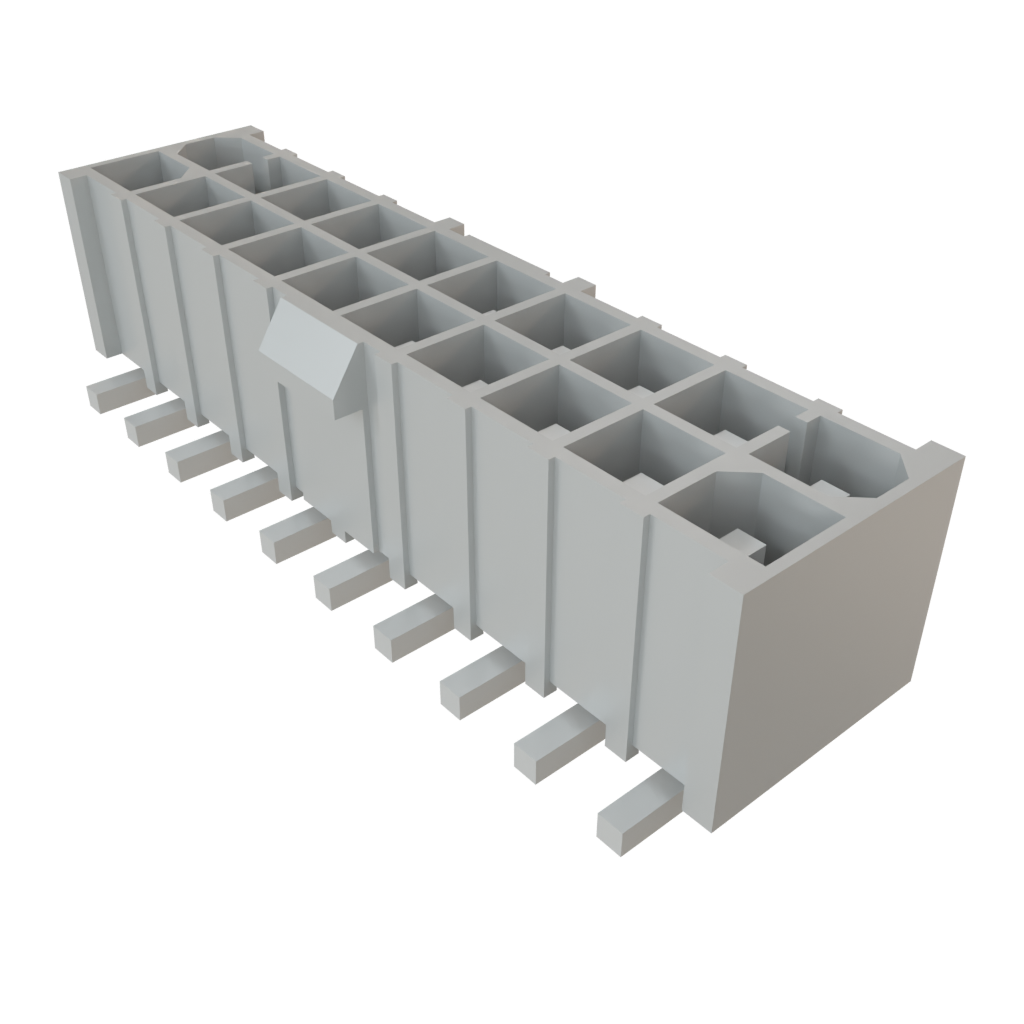

IPBT-110-H2-T-D-K

Name: Samtec IPBT-110-H2-T-D-K
Brand: Samtec
SKU: 200-IPBT110H2TDK
Price: 18.58 HKD
Availability: InStock

影像僅供參考
請參閱產品規格

Mouser 編號：

200-IPBT110H2TDK

製造商編號：

IPBT-110-H2-T-D-K

製造商：

Samtec

說明：

電源到板 .165 Power Mate Isolated Power Terminal Header

規格書:

IPBT-110-H2-T-D-K 規格書 (PDF)

ECAD模型:

下載免費的庫載入器，為ECAD工具轉換此文件。瞭解更多關於 ECAD 型號的資訊。

更多資訊

瞭解更多關於Samtec IPBT-110-H2-T-D-K的資訊

庫存量: 61

庫存：: 61 可立即送貨

發生意外錯誤了。請稍後再試。
工廠前置作業時間：: 14 週工廠預計生產時間數量大於所顯示的數量。

輸入數量：

最少： 1 多個： 1

單價:

HK$-.--

總價:

HK$-.--

估計關稅:

Pricing (HKD)

數量	單價	總價
	HK$18.58	HK$18.58
	HK$18.00	HK$468.00
	HK$17.43	HK$906.36
	HK$16.85	HK$1,752.40
	HK$16.11	HK$8,167.77
	HK$15.29	HK$15,305.29
	HK$13.32	HK$33,419.88
	HK$12.33	HK$61,711.65

.hidden-for-nojs { display: none; } .pull-right-nojs { justify-content: flex-end; }

商品屬性	屬性值	選擇屬性
製造商:	Samtec
產品類型:	電源到板
RoHS:
產品類型:	Power to the Board
聯繫人性別:	Pin (Male)
额定电流:	10.3 A
額定電壓:	400 VAC, 565 VDC
定位數:	20 Position
安裝風格:	SMD/SMT
終端類型:	Solder
間距:	4.19 mm
系列:	IPBT
封裝:	Tube
公司名稱:	Power Mate
品牌:	Samtec
觸點材料:	Copper Alloy
觸點电镀:	Tin
組裝國家:	Not Available
擴散國:	Not Available
原產國:	MY
外殼顏色:	Black
外殼材料:	Liquid Crystal Polymer (LCP)
最高工作溫度:	+ 105 C
最低工作溫度:	- 55 C
裝配角:	Straight
排數:	2 Row
行距:	4.19 mm
原廠包裝數量:	13
子類別:	Power Connectors
每件重量:	2.880 g

找到產品:

若要顯示類似商品，請選取至少一個核選方塊

至少選中以上一個核取方塊以顯示在此類別中類似的產品。

所選屬性: 0

篩選文檔:

Specification Sheets

Technical Resources

Test Report (PDF)

CNHTS:: 8536901100
CAHTS:: 8536690020
USHTS:: 8536694040
JPHTS:: 853669000
KRHTS:: 8536691000
TARIC:: 8536693000
MXHTS:: 8536699999
BRHTS:: 85366990
ECCN:: EAR99

4.19mm (0.165") Power Mate® Discrete Wire System

Samtec 4.19mm (0.165") Power Mate® Discrete Wire System features cables and connectors with individually shrouded contacts for reliability in harsh environments with up to 10.4A. This product lineup is available as components with tooling or as complete cable assemblies. The Power Mate discrete wire system is shrouded, polarized, and keyed and offers a 10.4A maximum current rating, 400V_AC / 566V_DC voltage rating, and 24AWG to 16AWG PVC or Teflon™ fluoropolymer cable. Additional features include plastic latches, single or double row, up to 30 pins, and mating terminal strips in a vertical or right-angle orientation. Ideal applications for the Samtec 4.19mm (0.165") Power Mate series are military, aerospace, submersibles, and other harsh environments.

Discrete Wire Components & Cable Assemblies

Samtec Discrete Wire Components and Cable Assemblies offer significant space savings and design flexibility in cable-to-board, cable-to-cable, and cable-to-panel applications. This discrete wire family is ideal for a variety of industries, including industrial, automation, military, automotive, and medical. The lineup is available in pitches from 1mm to 4.19mm, with a wire range from 30AWG to 16AWG. Samtec Discrete Wire Components and Cable Assemblies feature a comprehensive selection of bodies, contacts, and terminals with rugged latching, individually shrouded or high-reliability Tiger Eye™ contact systems, ultra-micro-power and high-power versions, keying, polarization, and more.
