PCIE-164-02-F-D-EMS2-BG

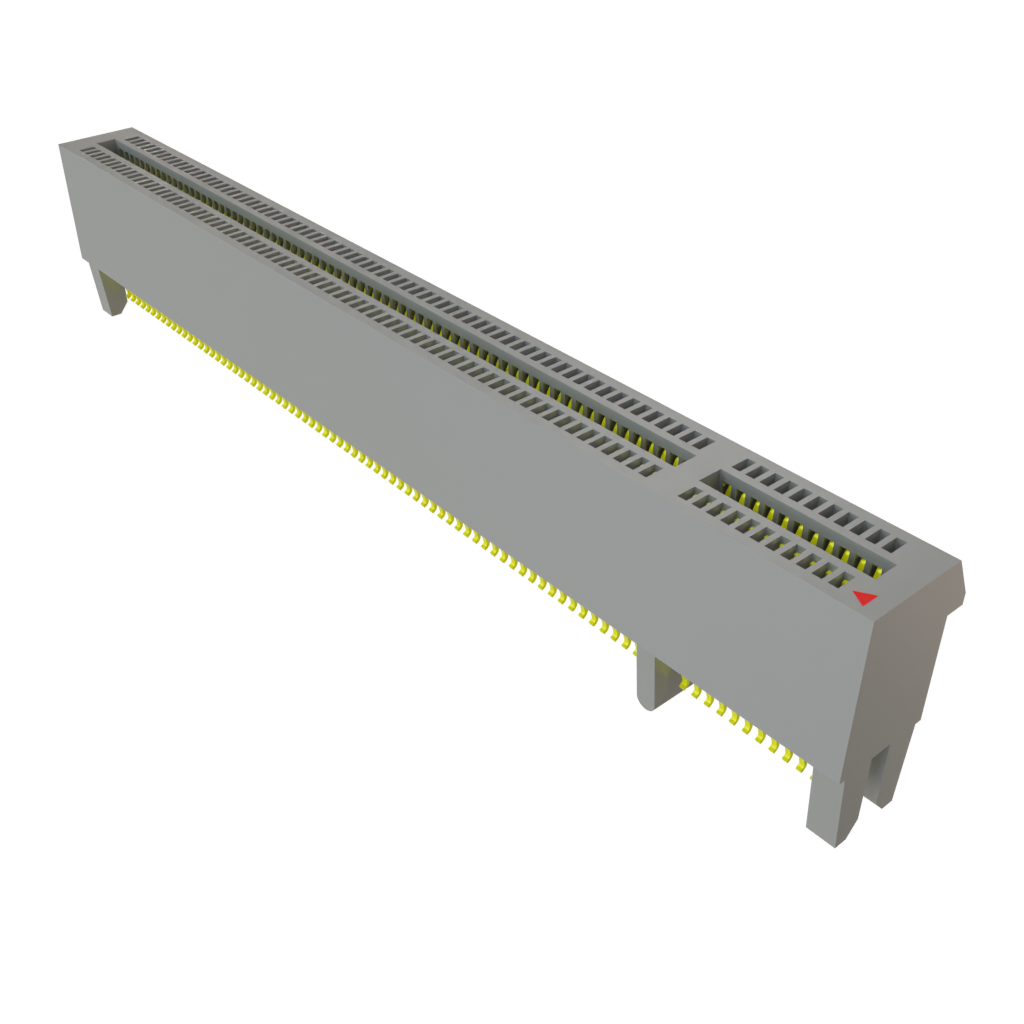

Name: Samtec PCIE-164-02-F-D-EMS2-BG
Brand: Samtec
SKU: 200-PCIE16402FDEMS2B
Price: 97.82 HKD
Availability: OutOfStock

影像僅供參考
請參閱產品規格

Mouser 編號：

200-PCIE16402FDEMS2B

製造商編號：

PCIE-164-02-F-D-EMS2-BG

製造商：

Samtec

說明：

PCI Express / PCI連接器 1.00 mm PCI Express(R) Gen 3 Edge Card Connector

規格書:

PCIE-164-02-F-D-EMS2-BG 規格書 (PDF)

ECAD模型:

下載免費的庫載入器，為ECAD工具轉換此文件。瞭解更多關於 ECAD 型號的資訊。

更多資訊

瞭解更多關於Samtec PCIE-164-02-F-D-EMS2-BG的資訊

供貨情況

庫存：: 0

您仍可購買此商品作為延期交貨訂單。

發生意外錯誤了。請稍後再試。
工廠前置作業時間：: 1 週工廠預計生產時間數量大於所顯示的數量。

輸入數量：

最少： 1 多個： 1

單價:

HK$-.--

總價:

HK$-.--

估計關稅:

Pricing (HKD)

數量	單價	總價
	HK$97.82	HK$97.82
	HK$88.20	HK$1,058.40
	HK$78.58	HK$2,357.40
	HK$64.20	HK$3,466.80
	HK$52.77	HK$5,382.54
	HK$48.99	HK$24,690.96
	HK$41.35	HK$41,432.70
	HK$33.78	HK$67,695.12

.hidden-for-nojs { display: none; } .pull-right-nojs { justify-content: flex-end; }

商品屬性	屬性值	選擇屬性
製造商:	Samtec
產品類型:	PCI Express / PCI連接器
RoHS:
產品:	PCI Express
定位數:	164 Position
安裝風格:	Edge Mount
裝配角:	Vertical
觸點材料:	Phosphor Bronze
觸點电镀:	Gold
系列:	PCIE
電路板厚度:	7.65 mm
品牌:	Samtec
組裝國家:	Not Available
擴散國:	Not Available
原產國:	CN
额定电流:	2.4 A
描述/功能:	PCI express card sockets
高度:	11 mm
外殼材料:	Liquid Crystal Polymer (LCP)
最高工作溫度:	+ 125 C
最低工作溫度:	- 55 C
排數:	2 Row
封裝:	Tube
產品類型:	PCI Express / PCI Connectors
原廠包裝數量:	6
子類別:	Card Edge Connectors
公司名稱:	PCI Express

找到產品:

若要顯示類似商品，請選取至少一個核選方塊

至少選中以上一個核取方塊以顯示在此類別中類似的產品。

所選屬性: 0

篩選文檔:

Specification Sheets

Technical Resources

Test Report (PDF)

CNHTS:: 8536901100
CAHTS:: 8536690020
USHTS:: 8536694040
JPHTS:: 853669000
KRHTS:: 8536691000
TARIC:: 8536693000
MXHTS:: 8536699999
BRHTS:: 85366990
ECCN:: EAR99

PCI Express® Edge Card Sockets

Samtec PCI Express® Edge Card Sockets feature a 1.00mm pitch and support 1, 4, 8, and 16 PCI Express links. These sockets come in four designs: PCIE 3.0, PCIE 4.0 (PCIE-LP), PCIE 4.0 (PCIE-G4), and PCIE 5.0/6.0. The PCIE 4.0 (PCIE-LP) solution has a low-profile design for space savings, while the PCIE 4.0 (PCIE-G4) solution features a slim body design, and the PCIE 5.0 solution offers differential pair signaling. Samtec PCI Express Edge Card Sockets mate with 1.6mm thick cards and have vertical, right-angle, and edge-mount options.

High-Speed Edge Card Connectors

Samtec High-Speed Edge Card Connectors feature a wide variety of pitches, including 0.5mm, 0.635mm, 0.8mm, 1mm, 1.27mm, 1.6mm, and 2mm. Mounting angles include straight, right, and vertical. These connectors are offered in an expansive range of mounting styles such as edge mount, board lock, mounting peg, SMD/SMT, straddle mount, through hole, and more. The number of positions on Samtec High-Speed Edge Card Connectors ranges from 8 to 300.

Artificial Intelligence Connectivity Solutions

Samtec Artificial Intelligence (AI) Connectivity Solutions feature an extensive portfolio of high-performance products that support next-generation system designs. These AI solutions are engineered with the complete system in mind, including architectures that demand increased speeds, frequencies, bandwidths, and densities, as well as configurability and scalability. The product lineup consists of high-speed cable assemblies, high-speed board-to-board connectors, high power and signal connectors, and RF cables, assemblies, and connectors. Samtec AI Connectivity Solutions are ideal for next-generation applications, from testing and development to full system optimization support.

Industry Standards Solution

Samtec's Industry Standards Solution improves compatibility, performance, and efficiency. Samtec provides connector products that interact with many types of hardware and software. This drives the need to adhere to a variety of Industry Standards.
