QMSS-026-06.75-H-D-A-GP

Name: Samtec QMSS-026-06.75-H-D-A-GP
Brand: Samtec
SKU: 200-QMSS0260675HDAGP
Price: 163.33 HKD
Availability: OutOfStock

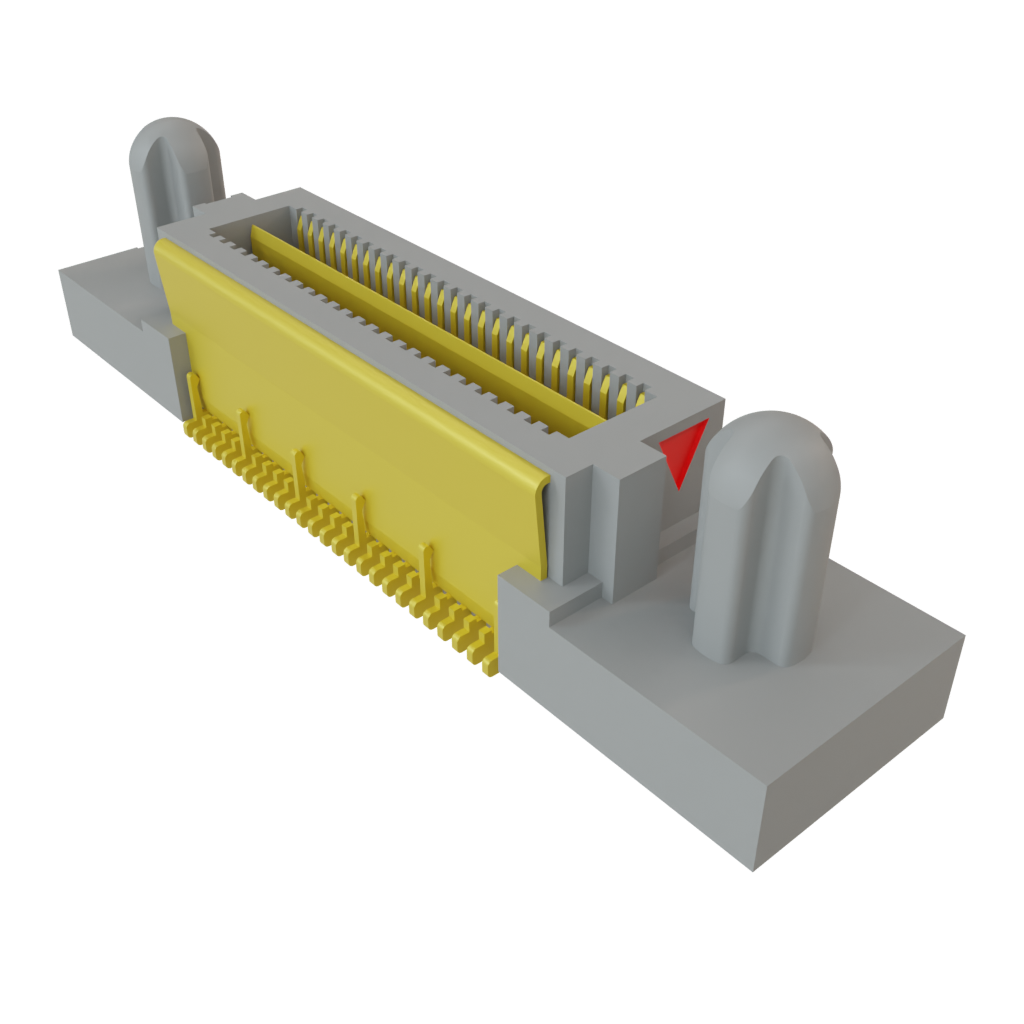

影像僅供參考
請參閱產品規格

Mouser 編號：

200-QMSS0260675HDAGP

製造商編號：

QMSS-026-06.75-H-D-A-GP

製造商：

Samtec

說明：

板對板及夾層連接器 0.635 mm Q2 Shielded Ground Plane Terminal Strip

規格書:

QMSS-026-06.75-H-D-A-GP 規格書 (PDF)

ECAD模型:

下載免費的庫載入器，為ECAD工具轉換此文件。瞭解更多關於 ECAD 型號的資訊。

更多資訊

瞭解更多關於Samtec QMSS-026-06.75-H-D-A-GP的資訊

供貨情況

庫存：: 暫無庫存

發生意外錯誤了。請稍後再試。
工廠前置作業時間：: 14 週工廠預計生產時間。

輸入數量：

最少： 44 多個： 44

單價:

HK$-.--

總價:

HK$-.--

估計關稅:

此產品免費航運

Pricing (HKD)

數量	單價	總價
	HK$163.33	HK$7,186.52
	HK$147.63	HK$12,991.44
	HK$111.05	HK$29,317.20
	HK$93.21	HK$49,214.88
	HK$78.58	HK$79,522.96

.hidden-for-nojs { display: none; } .pull-right-nojs { justify-content: flex-end; }

商品屬性	屬性值	選擇屬性
製造商:	Samtec
產品類型:	板對板及夾層連接器
RoHS:
產品:	Headers
定位數:	52 Position
間距:	0.635 mm (0.025 in)
排數:	2 Row
終端類型:	Solder
裝配角:	Vertical
堆疊高度:	11 mm
额定电流:	3.4 A
額定電壓:	300 VAC
最高數據率:	14 Gbps
最低工作溫度:	- 55 C
最高工作溫度:	+ 125 C
觸點电镀:	Gold
觸點材料:	Phosphor Bronze
外殼材料:	Liquid Crystal Polymer (LCP)
系列:	QMSS
封裝:	Tray
應用:	Rugged Application
品牌:	Samtec
組裝國家:	Not Available
擴散國:	Not Available
原產國:	CR
數據率:	14 Gbps
安裝風格:	Mounting Edge
產品類型:	Board to Board & Mezzanine Connectors
原廠包裝數量:	44
子類別:	Board to Board & Mezzanine Connectors
公司名稱:	Q2

找到產品:

若要顯示類似商品，請選取至少一個核選方塊

至少選中以上一個核取方塊以顯示在此類別中類似的產品。

所選屬性: 0

篩選文檔:

Specification Sheets

Technical Resources

Test Report (PDF)

CAHTS:: 8536690020
USHTS:: 8536694040
JPHTS:: 853669000
KRHTS:: 8536691000
TARIC:: 8536693000
MXHTS:: 8536699999
BRHTS:: 85366990
ECCN:: EAR99

Q2™ Shielded Ground Plane Connectors

Samtec Q2™ Shielded Ground Plane Connectors are rugged, high-speed, 0.635mm pitch, ground plane sockets and headers with a 19Gbps to 35Gbps performance range. The board-to-board Q2™ Shielded Connectors include the QFSS and QMSS series components that are available in multiple orientations, stack heights, positions, and with power/RF end options. These connectors are also available as a differential pair and/or power combo and meet the PCI/104-Express™ standard specifications.

Flexible Stacking Connectors

Samtec Flex Stacking Board Connectors feature a large variety of board-to-board connectors with design flexibility. These Samtec board-to-board connector systems are available in a variety of pitches, densities, stack heights, orientations, and other standard or modified options, making it easy to find the right connector for any application. Flex-Stack options include one-piece, low profile pass-through, elevated, hermaphroditic, shrouded, coplanar, parallel, and perpendicular. Post heights are adjustable in increments of 0.005” (0.13mm).
