QTE-040-02-L-D-A-K-TR

Name: Samtec QTE-040-02-L-D-A-K-TR
Brand: Samtec
SKU: 200-QTE04002LDAKTR
Price: 49.81 HKD
Availability: InStock

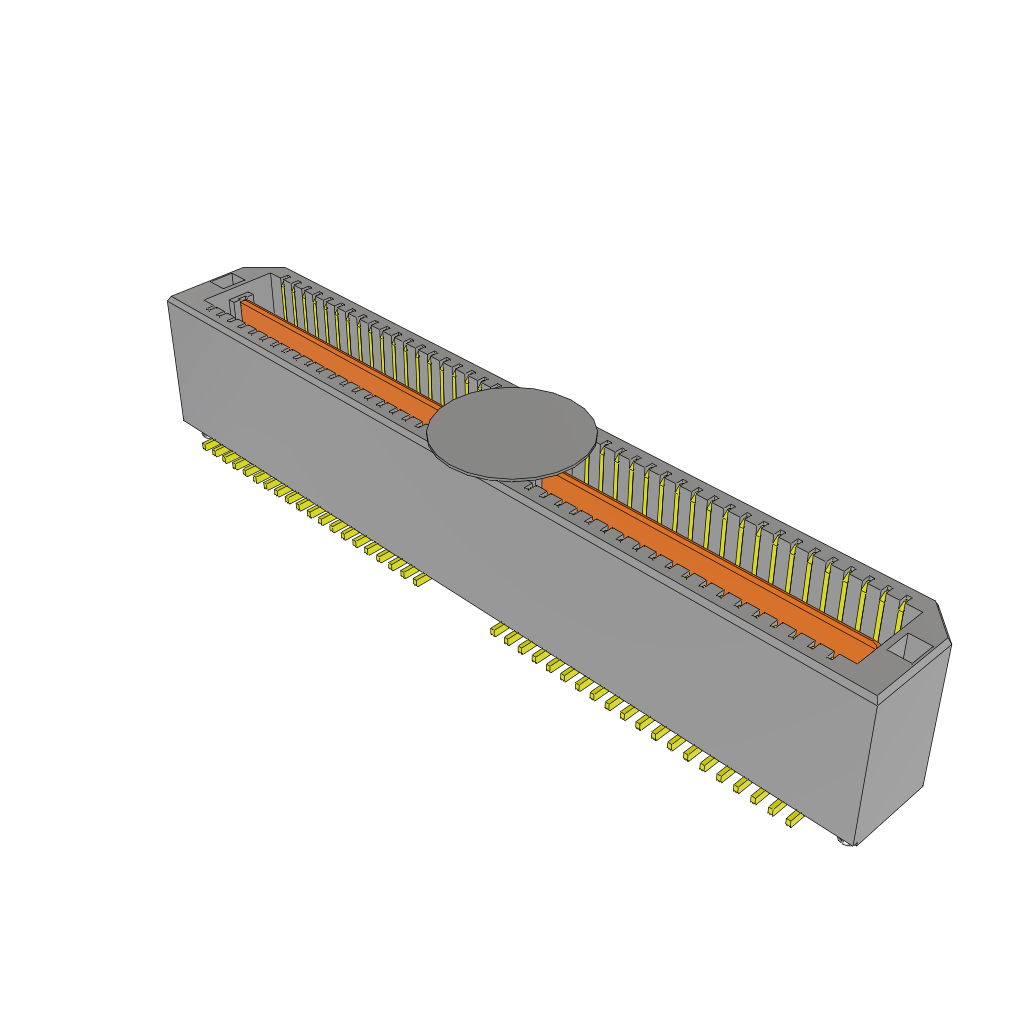

影像僅供參考
請參閱產品規格

Mouser 編號：

200-QTE04002LDAKTR

製造商編號：

QTE-040-02-L-D-A-K-TR

製造商：

Samtec

說明：

板對板及夾層連接器 Q Strip High-Speed Ground Plane Header

規格書:

QTE-040-02-L-D-A-K-TR 規格書 (PDF)

ECAD模型:

下載免費的庫載入器，為ECAD工具轉換此文件。瞭解更多關於 ECAD 型號的資訊。

更多資訊

瞭解更多關於Samtec QTE-040-02-L-D-A-K-TR的資訊

庫存量: 709

庫存：: 709 可立即送貨

發生意外錯誤了。請稍後再試。
工廠前置作業時間：: 1 週工廠預計生產時間數量大於所顯示的數量。

輸入數量：

最少： 1 多個： 1

單價:

HK$-.--

總價:

HK$-.--

估計關稅:

Pricing (HKD)

數量	單價	總價
	HK$49.81	HK$49.81
	HK$45.95	HK$2,297.50
	HK$43.07	HK$4,307.00
完整捲（訂購多個300）
	HK$38.80	HK$11,640.00
	HK$36.91	HK$22,146.00
	HK$34.44	HK$41,328.00
4,800	報價

備用包裝

製造商元件編號:

QTE-040-02-L-D-A-K

包裝:

Tray

供貨情況:

庫存量

價格:

HK$46.94

最小值:

.hidden-for-nojs { display: none; } .pull-right-nojs { justify-content: flex-end; }

商品屬性	屬性值	選擇屬性
製造商:	Samtec
產品類型:	板對板及夾層連接器
RoHS:
產品:	Connectors
定位數:	80 Position
間距:	0.8 mm (0.031 in)
排數:	2 Row
終端類型:	Solder
裝配角:	Straight
堆疊高度:	8 mm
额定电流:	2 A
額定電壓:	225 VAC
最高數據率:	28 Gbps
最低工作溫度:	- 55 C
最高工作溫度:	+ 125 C
觸點电镀:	Gold
觸點材料:	Phosphor Bronze
外殼材料:	Liquid Crystal Polymer (LCP)
系列:	QTE
封裝:	Reel
封裝:	Cut Tape
應用:	Power, Signal
品牌:	Samtec
組裝國家:	Not Available
擴散國:	Not Available
原產國:	CR
數據率:	28 Gb/s
易燃性等級:	UL 94 V-0
安裝風格:	SMD/SMT
產品類型:	Board to Board & Mezzanine Connectors
原廠包裝數量:	300
子類別:	Board to Board & Mezzanine Connectors
公司名稱:	Q Strip
每件重量:	760 mg

找到產品:

若要顯示類似商品，請選取至少一個核選方塊

至少選中以上一個核取方塊以顯示在此類別中類似的產品。

所選屬性: 0

篩選文檔:

Specification Sheets

Technical Resources

Test Report (PDF)

CNHTS:: 8538900000
CAHTS:: 8536690020
USHTS:: 8536694040
JPHTS:: 853669000
KRHTS:: 8536691000
TARIC:: 8536693000
MXHTS:: 8536699999
BRHTS:: 85366990
ECCN:: EAR99

Q Strip™ High-Speed Mezzanine Connectors

Samtec Q Strip™ High-Speed Mezzanine Connectors are designed for high-speed board-to-board applications where signal integrity is essential. Q Strip connectors have surface-mount signal contacts and a surface-mount ground plane between the two rows of signals for improved electrical performance. Mated sets of Samtec Q Strip connectors are available in 8 different stack heights from 5mm (.197") to 30mm (1.180"). Options include guideposts for blind mate scenarios and alignment pins and locking clips for proper connector placement before reflow.

5G Solutions

Samtec 5G Solutions support the ultra-high frequencies and high data rates that emerging 5G technologies demand. As this 5G network quickly gains momentum, new systems, devices, and equipment are needed for technologies such as mmWave, Massive MIMO, beamforming, and full-duplex (FDX). Samtec 5G Solutions feature high-performance products for four applications: Test and Development Systems, Remote Radio and Active Antennas, Network Equipment, and Automotive and Transportation.

Flexible Stacking Connectors

Samtec Flex Stacking Board Connectors feature a large variety of board-to-board connectors with design flexibility. These Samtec board-to-board connector systems are available in a variety of pitches, densities, stack heights, orientations, and other standard or modified options, making it easy to find the right connector for any application. Flex-Stack options include one-piece, low profile pass-through, elevated, hermaphroditic, shrouded, coplanar, parallel, and perpendicular. Post heights are adjustable in increments of 0.005” (0.13mm).

Q Strip™ QTE High-Speed Ground Plane Headers

Samtec Q Strip™ QTE High-Speed Ground Plane Headers are an Extended Life Product (E.L.P.™) and offer 5mm to 30mm stack heights and up to 200 positions. The QTE series features a 225V_AC voltage rating, a 2A per pin current rating, and a 28+Gbps solution. These headers have an integral metal plane that is useful for power or ground. Samtec Q Strip™ QTE High-Speed Ground Plane Headers are compatible with UMPT/UMPS for flexible two-piece power/signal solutions.
