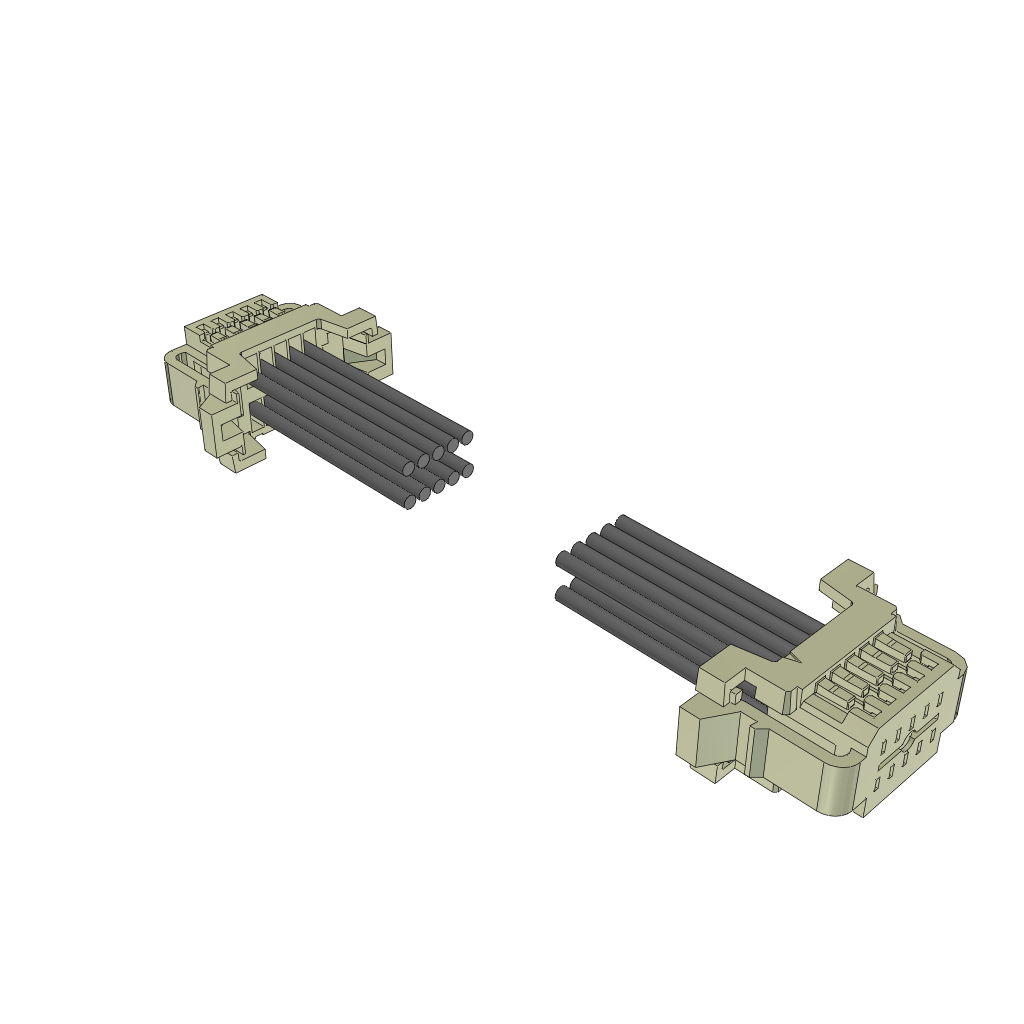

S1SD-05-28-GF-20.00-L1

Name: Samtec S1SD-05-28-GF-20.00-L1
Brand: Samtec
SKU: 200-S1SD0528GF20.0L1
Price: 74.88 HKD
Availability: InStock

影像僅供參考
請參閱產品規格

Mouser 編號：

200-S1SD0528GF20.0L1

製造商編號：

S1SD-05-28-GF-20.00-L1

製造商：

Samtec

說明：

矩形電纜組件 Micro Mate(TM) Double Row Discrete Wire Cable Assembly

規格書:

S1SD-05-28-GF-20.00-L1 規格書 (PDF)

ECAD模型:

下載免費的庫載入器，為ECAD工具轉換此文件。瞭解更多關於 ECAD 型號的資訊。

更多資訊

瞭解更多關於Samtec S1SD-05-28-GF-20.00-L1的資訊

庫存量: 21

庫存：: 21

可立即送貨

發生意外錯誤了。請稍後再試。
在途量:: 16
工廠前置作業時間：: 4

週工廠預計生產時間數量大於所顯示的數量。

輸入數量：

最少： 1 多個： 1

單價:

HK$-.--

總價:

HK$-.--

估計關稅:

Pricing (HKD)

數量	單價	總價
	HK$74.88	HK$74.88
	HK$69.21	HK$692.10
	HK$65.76	HK$1,644.00
	HK$54.25	HK$5,425.00
	HK$51.38	HK$25,690.00
	HK$45.54	HK$45,540.00
	HK$39.70	HK$79,400.00

.hidden-for-nojs { display: none; } .pull-right-nojs { justify-content: flex-end; }

商品屬性	屬性值	選擇屬性
製造商:	Samtec
產品類型:	矩形電纜組件
RoHS:
系列:	S1SD
產品:	Discrete Wire Cable Assemblies
類型:	Double Row Discrete Cable
連接器A端:	Socket
連接器A端針腳數:	10 Position
連接器B端:	Socket
連接器B端針腳數:	10 Position
性別:	Female / Female
電纜長度:	508 mm
線規 - AWG:	28 AWG
额定电流:	2.3 A
封裝:	Bag
品牌:	Samtec
組裝國家:	Not Available
擴散國:	Not Available
原產國:	CN
外殼材料:	Polyvinyl Chloride (PVC)
間距:	1 mm
產品類型:	Rectangular Cable Assemblies
原廠包裝數量:	1
子類別:	Cable Assemblies
額定電壓:	250 VAC/353 VDC

找到產品:

若要顯示類似商品，請選取至少一個核選方塊

至少選中以上一個核取方塊以顯示在此類別中類似的產品。

所選屬性: 0

篩選文檔:

規格書

S1SD-05-28-GF-20.00-L1 規格書 (PDF)

Images

圖像

Specification Sheets

Technical Resources

S1SD (PDF)

Technical Resources

Test Report (PDF)

USHTS:: 8544429090
ECCN:: EAR99

1mm Discrete Wire Cable Assemblies

Samtec 1mm Discrete Wire Cable Assemblies feature crimp-style, dual-leaf contacts. These IDC ribbon cables are approximately 6" in length and the socket is designed with 2 through 10 contacts per row. They utilize 30AWG and 28AWG cable. Samtec 1mm Discrete Wire Cable Assemblies offer a 3.3A current rating and 250V voltage rating.

Discrete Wire Components & Cable Assemblies

Samtec Discrete Wire Components and Cable Assemblies offer significant space savings and design flexibility in cable-to-board, cable-to-cable, and cable-to-panel applications. This discrete wire family is ideal for a variety of industries, including industrial, automation, military, automotive, and medical. The lineup is available in pitches from 1mm to 4.19mm, with a wire range from 30AWG to 16AWG. Samtec Discrete Wire Components and Cable Assemblies feature a comprehensive selection of bodies, contacts, and terminals with rugged latching, individually shrouded or high-reliability Tiger Eye™ contact systems, ultra-micro-power and high-power versions, keying, polarization, and more.

1mm Discrete Wire System

Samtec 1mm Discrete Wire System is a space-saving discrete wire system with crimp-style dual leaf contacts for a reliable wire-to-board connection. This Samtec 1mm-pitch wire system offers single-row (2-20 contacts) and double-row (4-40 contacts) versions and vertical and right-angle PCB connectors. These interconnects are available as components or complete assemblies.
