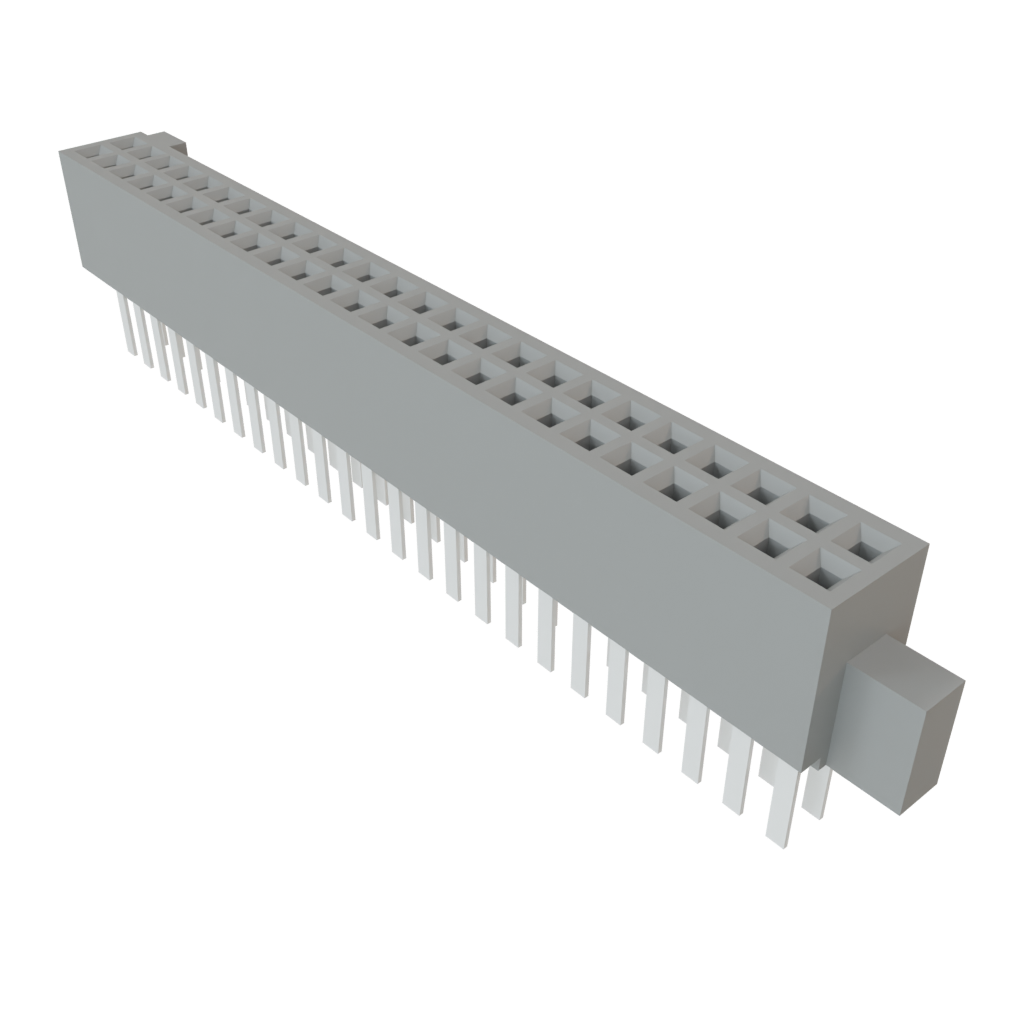

SFC-125-T1-L-D

Name: Samtec SFC-125-T1-L-D
Brand: Samtec
SKU: 200-SFC125T1LD
Price: 40.2 HKD
Availability: InStock

影像僅供參考
請參閱產品規格

Mouser 編號：

200-SFC125T1LD

製造商編號：

SFC-125-T1-L-D

製造商：

Samtec

說明：

集管和線殼 .050 Tiger Eye Cost-Effective Reliable Socket Strip

規格書:

SFC-125-T1-L-D 規格書 (PDF)

ECAD模型:

下載免費的庫載入器，為ECAD工具轉換此文件。瞭解更多關於 ECAD 型號的資訊。

更多資訊

瞭解更多關於Samtec SFC-125-T1-L-D的資訊

庫存量: 18

庫存：: 18 可立即送貨

發生意外錯誤了。請稍後再試。
工廠前置作業時間：: 2 週工廠預計生產時間數量大於所顯示的數量。

輸入數量：

最少： 1 多個： 1

單價:

HK$-.--

總價:

HK$-.--

估計關稅:

Pricing (HKD)

數量	單價	總價
	HK$40.20	HK$40.20
	HK$36.66	HK$366.60
	HK$34.11	HK$852.75
	HK$27.70	HK$3,102.40
	HK$24.82	HK$12,707.84
	HK$20.80	HK$20,966.40
	HK$17.76	HK$35,520.00

.hidden-for-nojs { display: none; } .pull-right-nojs { justify-content: flex-end; }

商品屬性	屬性值	選擇屬性
製造商:	Samtec
產品類型:	集管和線殼
RoHS:
產品:	Headers
類型:	Socket
定位數:	50 Position
間距:	1.27 mm (0.05 in)
排數:	2 Row
行距:	1.27 mm (0.05 in)
安裝風格:	Through Hole
終端類型:	Solder
裝配角:	Straight
聯繫人性別:	Socket (Female)
觸點电镀:	Gold
終端長度:	3.05 mm (0.12 in)
系列:	SFC
公司名稱:	Tiger Eye
應用:	Board-to-Board
最低工作溫度:	- 55 C
最高工作溫度:	+ 125 C
封裝:	Tube
品牌:	Samtec
觸點材料:	Phosphor Bronze
組裝國家:	Not Available
擴散國:	Not Available
原產國:	US
额定电流:	3.1 A
易燃性等級:	UL 94 V-0
外殼顏色:	Black
外殼材料:	Liquid Crystal Polymer (LCP)
閉鎖類型:	Unlatched
產品類型:	Headers & Wire Housings
原廠包裝數量:	16
子類別:	Headers & Wire Housings
額定電壓:	350 V

找到產品:

若要顯示類似商品，請選取至少一個核選方塊

至少選中以上一個核取方塊以顯示在此類別中類似的產品。

所選屬性: 0

篩選文檔:

規格書

SFC-125-T1-L-D 規格書 (PDF)

Images

圖像

Specification Sheets

Technical Resources

Test Report (PDF)

USHTS:: 8536694040
ECCN:: EAR99

Discrete Wire Components & Cable Assemblies

Samtec Discrete Wire Components and Cable Assemblies offer significant space savings and design flexibility in cable-to-board, cable-to-cable, and cable-to-panel applications. This discrete wire family is ideal for a variety of industries, including industrial, automation, military, automotive, and medical. The lineup is available in pitches from 1mm to 4.19mm, with a wire range from 30AWG to 16AWG. Samtec Discrete Wire Components and Cable Assemblies feature a comprehensive selection of bodies, contacts, and terminals with rugged latching, individually shrouded or high-reliability Tiger Eye™ contact systems, ultra-micro-power and high-power versions, keying, polarization, and more.

1.27mm Tiger Eye™ Discrete Wire System

Samtec 1.27mm (0.050") Tiger Eye™ Discrete Wire System includes cables, plugs, sockets, and terminal strips designed for micro rugged applications. These products are available as components or complete assemblies and feature the high-reliability Tiger Eye contact system. Samtec 1.27mm Tiger Eye Discrete Wire System offers shrouded, polarized, and keyed products with PVC or Teflon cable. Metal latch and screw-down options are also available.
