TFSD-10-28-G-08.00-T-NDS

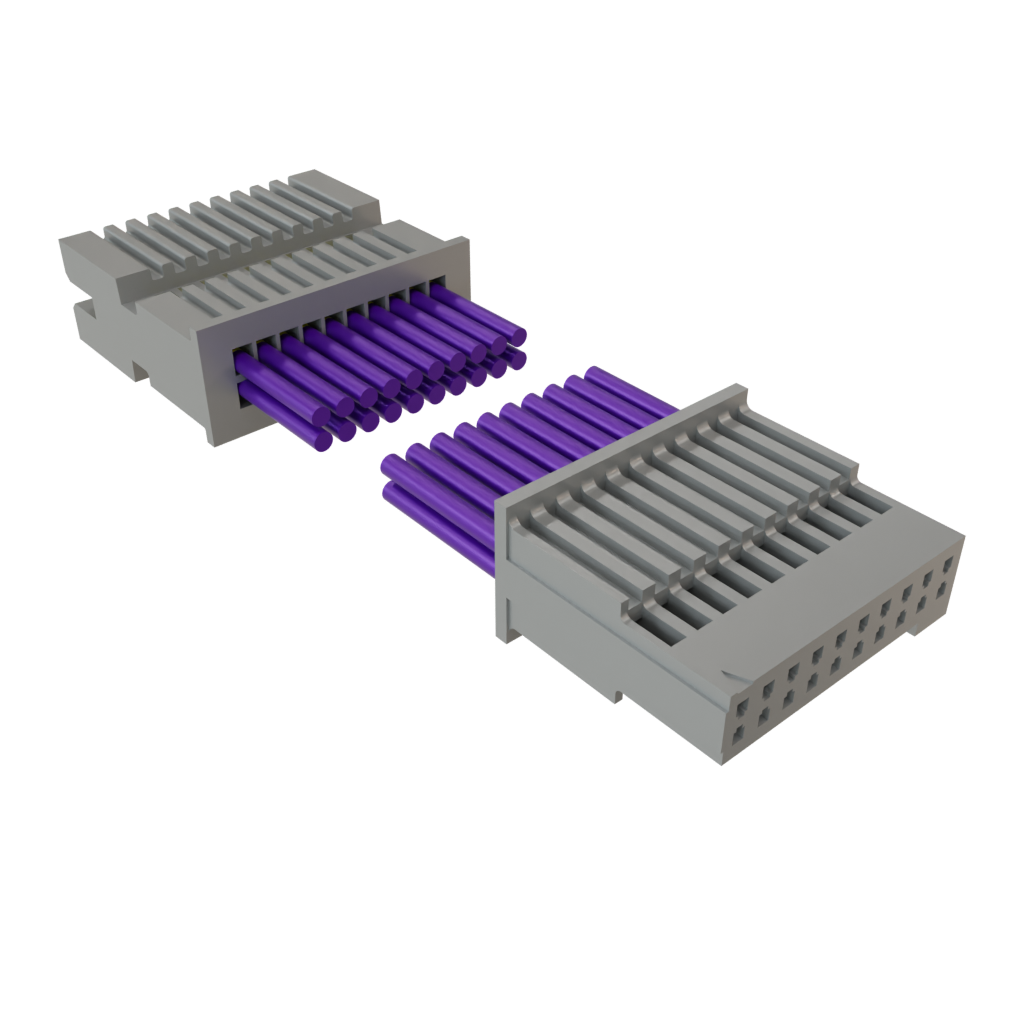

Name: Samtec TFSD-10-28-G-08.00-T-NDS
Brand: Samtec
SKU: 200-FSD1028G0800TNDS
Price: 142.86 HKD
Availability: InStock

影像僅供參考
請參閱產品規格

Mouser 編號：

200-FSD1028G0800TNDS

製造商編號：

TFSD-10-28-G-08.00-T-NDS

製造商：

Samtec

說明：

矩形電纜組件 .050 Tiger Eye Double Row Discrete Wire Cable Assembly

ECAD模型:

下載免費的庫載入器，為ECAD工具轉換此文件。瞭解更多關於 ECAD 型號的資訊。

更多資訊

瞭解更多關於Samtec TFSD-10-28-G-08.00-T-NDS的資訊

庫存量: 31

庫存：: 31 可立即送貨

發生意外錯誤了。請稍後再試。
工廠前置作業時間：: 4 週工廠預計生產時間數量大於所顯示的數量。

輸入數量：

最少： 1 多個： 1

單價:

HK$-.--

總價:

HK$-.--

估計關稅:

Pricing (HKD)

數量	單價	總價
	HK$142.86	HK$142.86
	HK$135.30	HK$1,353.00
	HK$132.42	HK$3,310.50
	HK$110.07	HK$11,007.00
	HK$104.48	HK$26,120.00
	HK$93.21	HK$46,605.00
	HK$81.87	HK$81,870.00

.hidden-for-nojs { display: none; } .pull-right-nojs { justify-content: flex-end; }

商品屬性	屬性值	選擇屬性
製造商:	Samtec
產品類型:	矩形電纜組件
RoHS:
系列:	TFSD
產品:	Discrete Wire Cable Assemblies
類型:	Double Row Discrete Cable
連接器A端:	Plug
連接器A端針腳數:	20 Position
連接器B端:	Socket
連接器B端針腳數:	20 Position
性別:	Male / Female
電纜長度:	203.2 mm
線規 - AWG:	28 AWG
外殼顏色:	Black
封裝:	Bulk
品牌:	Samtec
組裝國家:	Not Available
擴散國:	Not Available
原產國:	CN
外殼材料:	Polyvinyl Chloride (PVC)
間距:	1.27 mm
產品類型:	Rectangular Cable Assemblies
原廠包裝數量:	1
子類別:	Cable Assemblies
公司名稱:	Tiger Eye Discrete

找到產品:

若要顯示類似商品，請選取至少一個核選方塊

至少選中以上一個核取方塊以顯示在此類別中類似的產品。

所選屬性: 0

篩選文檔:

Images

圖像

Specification Sheets

Technical Resources

Test Report (PDF)

Technical Resources

TFSD (PDF)

CAHTS:: 8544420090
USHTS:: 8544429090
JPHTS:: 854442099
KRHTS:: 8544422090
TARIC:: 8544429090
MXHTS:: 8544429999
BRHTS:: 85444200
ECCN:: EAR99

TFSDx/TSDF/T1M44 0.050" Discrete Wire Connectors

Samtec TFSD, TFSDT, TSDF, and T1M44-x 0.050" Discrete Wire Connectors and Cable Assemblies feature the high-reliability Tiger Eye™ contact system with shrouded, polarized, and keyed variants. These housings, cable assemblies, and terminals offer a 0.050" (1.27mm) pitch, black LCP insulator, and gold-plated BeCu contacts in a 30AWG to 28AWG range. The 0.050" (1.27mm) Discrete Wire components range from six to 100 positions and mate with the SFM, SFC (-TR requires TFM-WT option), and SFML (-XL option required) sockets.

Discrete Wire Components & Cable Assemblies

Samtec Discrete Wire Components and Cable Assemblies offer significant space savings and design flexibility in cable-to-board, cable-to-cable, and cable-to-panel applications. This discrete wire family is ideal for a variety of industries, including industrial, automation, military, automotive, and medical. The lineup is available in pitches from 1mm to 4.19mm, with a wire range from 30AWG to 16AWG. Samtec Discrete Wire Components and Cable Assemblies feature a comprehensive selection of bodies, contacts, and terminals with rugged latching, individually shrouded or high-reliability Tiger Eye™ contact systems, ultra-micro-power and high-power versions, keying, polarization, and more.

1.27mm Tiger Eye™ Discrete Wire System

Samtec 1.27mm (0.050") Tiger Eye™ Discrete Wire System includes cables, plugs, sockets, and terminal strips designed for micro rugged applications. These products are available as components or complete assemblies and feature the high-reliability Tiger Eye contact system. Samtec 1.27mm Tiger Eye Discrete Wire System offers shrouded, polarized, and keyed products with PVC or Teflon cable. Metal latch and screw-down options are also available.
