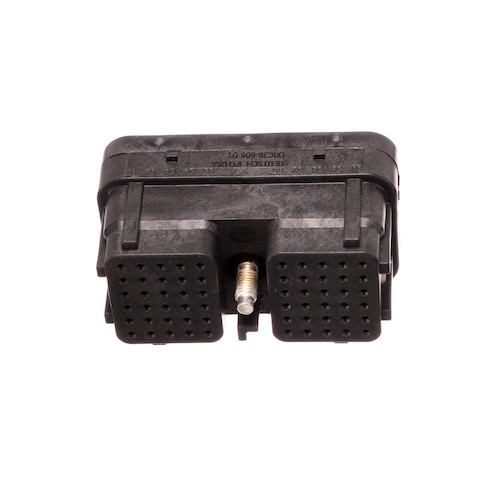

DRC26-60S01

TE Connectivity / DEUTSCH
571-DRC26-60S01
DRC26-60S01

製造商:

說明:
汽車連接器 60P PLUG ASM

ECAD模型:
下載免費的庫載入器,為ECAD工具轉換此文件。瞭解更多關於 ECAD 型號的資訊。

供貨情況

庫存:
0

您仍可購買此商品作為延期交貨訂單。

工廠前置作業時間:
10 週 工廠預計生產時間數量大於所顯示的數量。
最少: 1   多個: 1
單價:
HK$-.--
總價:
HK$-.--
估計關稅:

Pricing (HKD)

數量 單價
總價
HK$238.54 HK$238.54
HK$237.23 HK$2,372.30
HK$179.20 HK$8,960.00
HK$177.06 HK$17,706.00
HK$173.03 HK$43,257.50
HK$171.06 HK$85,530.00
1,000 報價

商品屬性 屬性值 選擇屬性
TE Connectivity
產品類型: 汽車連接器
RoHS:
REACH - SVHC:
Housings
60 Position
4.42 mm (0.174 in)
Plug (Male)
Cable Mount / Free Hanging
Crimp
20 AWG
16 AWG
Black
DRC
品牌: TE Connectivity / DEUTSCH
聯繫人性別: Socket (Female)
組裝國家: Not Available
擴散國: Not Available
原產國: MX
额定电流: 7.5 A
尺寸: 68.58 mm x 36.45 mm x 36.78 mm
高度: 36.45 mm
外殼材料: Plastic
長度: 36.78 mm
對接端子性別: Receptacle
配合零件號: 0944328L01
最高工作溫度: + 125 C
最低工作溫度: - 55C
裝配角: Straight
排數: 6 Row
產品類型: Automotive Connectors
原廠包裝數量: 1
子類別: Automotive Connectors
額定電壓: 250 V
寬度: 68.58 mm
線規范圍: 22 AWG to 16 AWG
每件重量: 106 g
找到產品:
若要顯示類似商品,請選取至少一個核選方塊
至少選中以上一個核取方塊以顯示在此類別中類似的產品。
所選屬性: 0

CNHTS:
8547200000
CAHTS:
8536690020
USHTS:
8538908180
JPHTS:
853890000
KRHTS:
8536691000
TARIC:
8536699099
MXHTS:
85366999
BRHTS:
85366990
ECCN:
EAR99

DRC Automotive Connectors & Accessories

TE Connectivity's / DEUTSCH DRC Automotive Connectors and Accessories offer insert arrangements of 24, 40, 50, 60, 64, 70, and 76 cavities. These environmentally sealed connectors accept 12, 16, and 20-size contacts. The DRC connectors provide in-line, flange mount, and PCB mounting options. These automotive connectors come with an IP68 rating and an operating temperature range of -55°C to +125°C. The DRC connectors feature 1000MΩ minimum at 25°C insulation resistance and current leakage less than 2mA at 1500V AC dielectric withstanding voltage. These connectors provide no electrical or mechanical defect after 100 cycles of engagement and disengagement. The DRC connectors are moisture-resistant and fluid-resistant.
