2065769-1

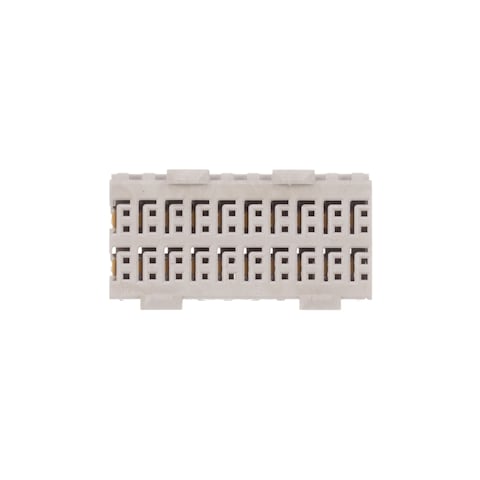

Name: TE Connectivity 2065769-1
Brand: TE Connectivity
SKU: 571-2065769-1
Price: 254.08 HKD
Availability: InStock

影像僅供參考
請參閱產品規格

Mouser 編號：

571-2065769-1

製造商編號：

2065769-1

製造商：

TE Connectivity

說明：

硬公制連接器 ZD PLUS 2PR 40P RCPT ASSY

規格書:

2065769-1 規格書

ECAD模型:

下載免費的庫載入器，為ECAD工具轉換此文件。瞭解更多關於 ECAD 型號的資訊。

更多資訊

瞭解更多關於TE Connectivity 2065769-1的資訊

庫存量: 162

庫存：: 162

可立即送貨

發生意外錯誤了。請稍後再試。
在途量:: 400
工廠前置作業時間：: 8

週工廠預計生產時間數量大於所顯示的數量。

輸入數量：

最少： 1 多個： 1

單價:

HK$-.--

總價:

HK$-.--

估計關稅:

Pricing (HKD)

數量	單價	總價
	HK$254.08	HK$254.08
	HK$216.02	HK$2,160.20
	HK$202.38	HK$4,047.60
	HK$192.76	HK$11,565.60
	HK$189.39	HK$49,241.40
1,000	報價

.hidden-for-nojs { display: none; } .pull-right-nojs { justify-content: flex-end; }

商品屬性	屬性值	選擇屬性
製造商:	TE Connectivity
產品類型:	硬公制連接器
RoHS:
產品:	Receptacles
排數:	2 Row
定位數:	40 Position
安裝風格:	Through Hole
終端類型:	PCB
裝配角:	Right Angle
觸點电镀:	Matte Tin
系列:	Z-Pack
封裝:	Tube
品牌:	TE Connectivity
觸點材料:	Copper, Nickel, Silicon
組裝國家:	Not Available
擴散國:	Not Available
原產國:	CN
外殼材料:	Polyester (PCT)
間距:	2.5 mm
產品類型:	Hard Metric Connectors
原廠包裝數量:	20
子類別:	Backplane Connectors
每件重量:	17.210 g

找到產品:

若要顯示類似商品，請選取至少一個核選方塊

至少選中以上一個核取方塊以顯示在此類別中類似的產品。

所選屬性: 0

篩選文檔:

規格書

2065769-1 規格書

Images

Models

2065769-1 Symbol & Footprint by SnapMagic

PCN

RoHS Certificate (PDF)

CNHTS:: 8536901100
TARIC:: 8536693000
CAHTS:: 8536690020
USHTS:: 8536694040
JPHTS:: 853669000
KRHTS:: 8536691000
MXHTS:: 85366999
BRHTS:: 85366990
ECCN:: EAR99

Z-PACK HM-Zd Connector System

TE Connectivity's (TE) Z-PACK HM-Zd Connector System is a high-speed, differential connector system that is compatible with the Z-PACK 2mm HM connector line. Z-PACK HH-Zd components provide Z-PACK 2mm HM users with a migration path for serial switching applications from 3.125Gbps to 5.0Gpbs. The system features a highly reliable dual-beam contact system with fully encompassing grounds dedicated to each differential pair. In addition, the TE Z-PACK HM-Zd connector footprint is optimized for routability and system performance with the use of a 1.50mm x 2.50mm (0.059" x 0.098") row to column grid. The connector design features a robust mating interface with built-in pre-alignment and polarization features. Applications for TE Z-PACK HM-Zd Connector System include switches, servers/blade servers, routers, and storage.

Z-PACK HM-Zd Connectors

TE Connectivity Z-PACK HM-Zd Connector System is for high-speed differential applications. Z-PACK HM-Zd Connectors feature a highly reliable dual beam contact system with fully encompassing grounds dedicated to each differential pair. The footprint is optimized for both routability and system performance with a 1.5mm x 2.5mm row-to-column grid. The robust mating interface ensures correct polarization and alignment. Target applications for the TE Connectivity Z-PACK HM-Zd Connectors include telecommunication equipment such as hubs, routers and switches; data networking equipment such as servers and storage devices; test and measurement equipment; and medical diagnostic equipment.

Z-PACK HM-Zd Plus Connectors

TE Connectivity's (TE) Z-PACK HM-Zd Plus Connectors update the daughter connections to enhance performance, resulting in lower cross talk. This is achieved through the incorporation of added ground contacts on the outside pair of the receptacle connector system. This connector system performs at 15Gbp/s with a migration plan to 20Gbp/s. The daughter card connector remains compatible with existing Z-PACK HM-Zd backplane connectors. TE Z-PACK HM-Zd Plus Connectors are well-suited for advanced TCA next-generation applications and specified for advanced TCA zone 2 requirements.
