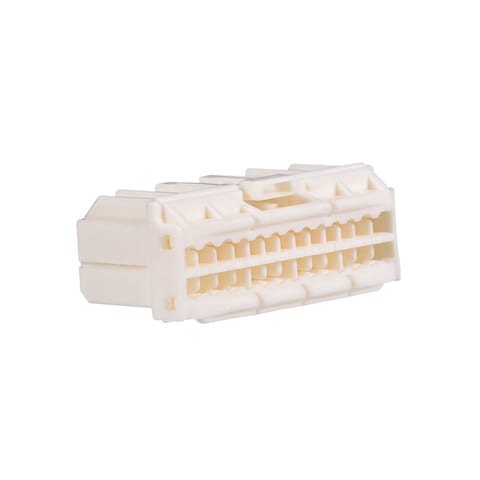

368136-1

TE Connectivity
571-368136-1
368136-1

製造商:

說明:
汽車連接器 040/070 HYB 26P PLUG HSG

ECAD模型:
下載免費的庫載入器,為ECAD工具轉換此文件。瞭解更多關於 ECAD 型號的資訊。

庫存量: 120

庫存:
120 可立即送貨
工廠前置作業時間:
18 週 工廠預計生產時間數量大於所顯示的數量。
最少: 1   多個: 1
單價:
HK$-.--
總價:
HK$-.--
估計關稅:

Pricing (HKD)

數量 單價
總價
HK$8.55 HK$8.55
HK$7.27 HK$72.70
HK$6.49 HK$162.25
HK$6.01 HK$601.00
HK$5.71 HK$1,713.00
HK$5.41 HK$3,246.00
HK$5.06 HK$5,313.00
HK$4.70 HK$11,985.00
HK$4.59 HK$23,409.00

商品屬性 屬性值 選擇屬性
TE Connectivity
產品類型: 汽車連接器
RoHS:
Housings
26 Position
Receptacle (Female)
Cable Mount / Free Hanging
Crimp
22 AWG
16 AWG
Natural
.040/.070 MULTILOCK
Bulk
應用: Wire to Wire
品牌: TE Connectivity
聯繫人性別: Without Socket Contacts
組裝國家: Not Available
擴散國: Not Available
原產國: KR
额定电流: 19 A
高度: 21 mm
外殼材料: Polybutylene Terephthalate (PBT)
長度: 43.1 mm
最高工作溫度: + 105 C
最低工作溫度: - 30 C
產品類型: Automotive Connectors
行距: 5.2 mm
原廠包裝數量: 150
子類別: Automotive Connectors
公司名稱: MULTILOCK
類型: Plug Housing
寬度: 28 mm
線規范圍: 22 AWG to 16 AWG
每件重量: 8.110 g
找到產品:
若要顯示類似商品,請選取至少一個核選方塊
至少選中以上一個核取方塊以顯示在此類別中類似的產品。
所選屬性: 0

CNHTS:
8538900000
CAHTS:
8536690020
USHTS:
8538908180
JPHTS:
853890000
KRHTS:
8536691000
TARIC:
8538909999
MXHTS:
85366999
BRHTS:
85366990
ECCN:
EAR99

.040/.070 Hybrid MULTILOCK Connectors

TE Connectivity's (TE) .040/.070 MULTILOCK Series is a hybrid system that incorporates both the .040 and .070 Series. The system has connectors for use with a mixture of .040 terminals for signal circuits and .070 terminals for power circuits. TE MULTILOCK connectors offer a versatile variation in a number of positions ranging from 26 to 76, and the contacts are available with pre-tinned or gold plating.

MULTILOCK Connector System

TE Connectivity's (TE) MULTILOCK Connectors are durable wire-to-wire and wire-to-board connectors. TE's MULTILOCK Connectors are ideal for the automotive industry and are available in .025/.040/.070 and hybrid versions. The connectors consist of a plug housing with receptacle contacts and a cap housing with tab contacts for wire termination. Additionally, the cap housing assembly can be mounted onto the printed circuit board either vertically or horizontally.
