Molex Nano-Fit™ 2.5mm 電源連接器

Molex Nano-Fit™ 2.5mm 電源連接器為完全隔離的電源連接器，並配備完全隔離的端子，體積小巧。當工程師不願意選擇外露端子或佔用空間的保護接頭時，提供另一個節省空間的解決方案供其選用。Nano-Fit連接器具備多種鍵合組態與顏色，當設計案中的相同電路板包含數個相同電路尺寸的接頭時，本產品即可滿足此設計需求。採用Nano-Fit可降低交叉配對的風險，並可提高組裝速度。這些接頭的設計適用於單排與雙排插座中可選擇的 TPA (端子定位保證) 固定器。

View Nano-Fit Pre-Crimped Leads
View Nano-Fit Test Plugs

特點

Small, fully isolated headers
Multiple mechanical keying and color-coded options
Optional TPA retainer
Fully isolated terminals with gold or tin plating

Ultra-low mate force terminal with retention tang, contact rib, and 4-points of contact
Positive-lock housing with anti-snag design
Multilayer boards

應用

Consumer/home appliance
- Refrigerators
- Washers/dryers
- Mobile devices
Telecommunications/networking
- Servers
- Hubs
Automotive
- Interior lighting
Lighting
- Home lighting fixtures
- Ballasts

Aerospace and defense
- C4ISR
Industrial
- Assembly line equipment
- Food and beverage
Medical
- Healthcare IT
- Patient care equipment

影片

{"PlayerType":"Video","BrightcoveId":"6129565493001"}

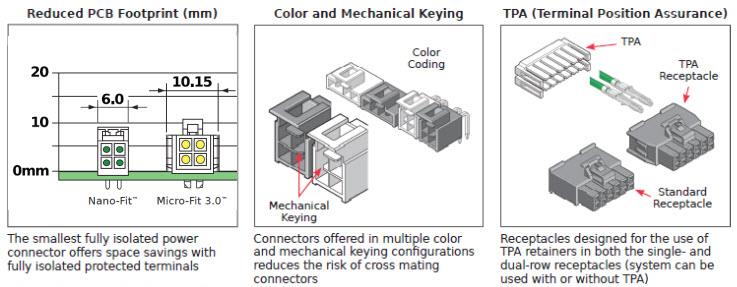

Feature Highlights

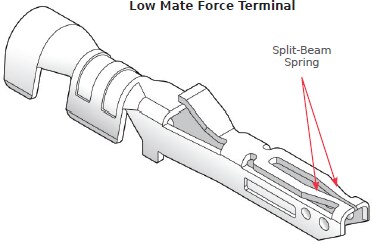

Terminal Diagram
