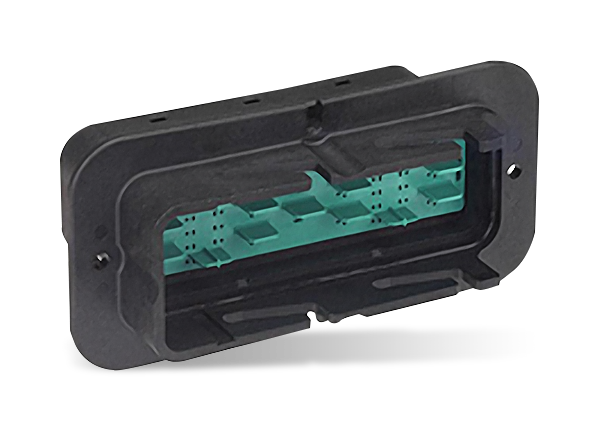

Molex Sealed Rectangular Connectors (SRC)

Molex Sealed Rectangular Connectors (SRC) offer single-handed blind-mate functionality use proven MX150™ and MX150L™ terminals to offer a hybrid, high power-and-signal circuit-count system for harsh applications in commercial vehicles. Molex Sealed Rectangular Connectors (SRC) offer a rugged, sealed, wire-to-panel (bulkhead) and wire-to-wire hybrid connection system designed for high circuit-count applications in harsh environments. The primary location for this system is as the firewall connector, situated between the cab and the engine, but SRC can also replace existing circular connectors in various in-vehicle applications. The SRC system uses proven MX150™ terminals with current ratings up to 18.0A and MX150L terminals with current ratings up to 40A. Flexible standard or mixed power /signal options are available.

Features

  • Pre-assembled connector housing, seals, rear cover and TPA ship in one-piece
  • Simple crimp, poke and plug application using standard MX150™ and MX150L™ terminals
  • Sliding latch with cam action
  • Integral Terminal Position Assurance (TPA) with a anti-scooping feature
  • Integral, two-way matte seal plus interface seal with improved retention features protective rear cover
  • Connector system retention greater than 200N
  • Single-handed mating and locking action, no screw action or tools required for mating assembly
  • Passes IP69K testing

Applications

  • Agricultural machines
  • Commercial vehicles
  • Construction and mining equipment
  • Forest and garden equipment
  • Generator sets (Gensets)
  • Marine equipment
  • Material handling
  • Search, detection, and navigation equipment
  • Trains and rail equipment
