Nexperia PESD2CANFD36x ESD Protection Devices
Nexperia PESD2CANFD36x ESD Protection Devices protect two automotive In-vehicle network bus lines from ElectroStatic discharge (ESD) damage. The PESD2CANFD36x features a 36V reverse stand-off voltage and low clamping voltage. The Nexperia PESD2CANFD36x Devices are available in a small SOT23 or SOT323 Surface-Mounted Device (SMD) plastic package. The devices are qualified according to AEC-Q101 and suggested for use in automotive applications.
Features
- 36V Reverse stand-off voltage
- Low clamping voltage
- 6pF Low capacitance
- Qualified according to AEC-Q101 and recommended for use in automotive applications
Applications
- 24V board net / truck systems
- CAN / CAN-FD
- FlexRay
- SENT

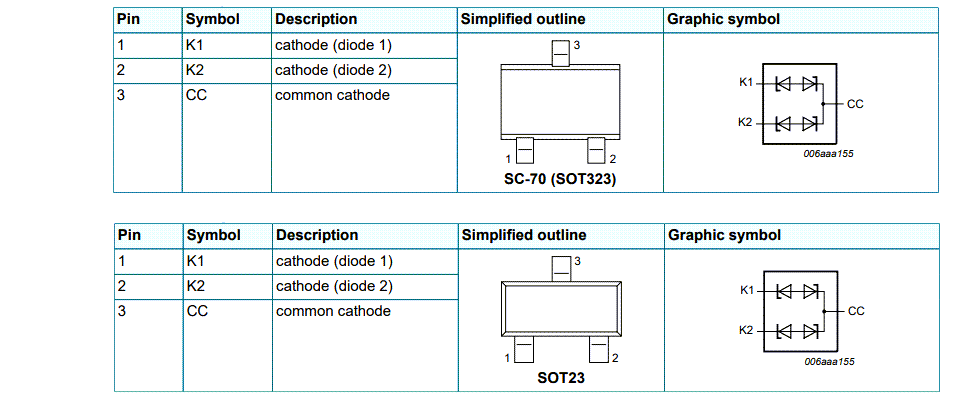

Pinning Diagrams
Associated Products
Nexperia PESDxIVN In-Vehicle Networking ESD Protection
AEC-Q101 qualified, protects IVN bus lines from damage caused by ESD and other transients.
Nexperia PESD2CANFD36xQx-Q ESD Protection Diodes
Protects two automotive in-vehicle network bus lines from damage caused by ESD and other transients.
