Nisshinbo NJM8532R-Z Dual Operational Amplifier IC
Nisshinbo NJM8532R-Z Dual Operational Amplifier IC is a rail-to-rail input and output single supply op-amp IC with 14V supply voltage and low power. This op-amp IC is AEC-Q100 grade 1 qualified and is ideal for battery-powered applications requiring an optimal balance between low power, low noise, and wide bandwidth. The NJM8532R-Z op-amp IC features a 580μA typical low supply current, low noise of 10nV/√Hz at 1kHz, 5mV maximum offset voltage, and 0.4V/μs typical slew rate. This op-amp IC operates within the -40°C to 125°C operating temperature range and comes in an MSOP8 (VSP8) package. Typical applications include audio amplifiers, hi-side current sensing, and buffering.
Features
- Low noise
- Low power
- Bipolar technology
- AEC-Q100 grade1 qualified
- RoHS compliant
Specifications
- VICM=0V to 5V, at V+=5V (Rail-to-Rail input)
- VOH≥4.85V/VOL≤0.15V, at V+=5V, RL = 20kΩ (Rail-to-Rail output)
- 1.8V to 14V wide supply voltage range
- 5mV maximum offset voltage
- 0.4V/μs typical slew rate
- 580μA typical low supply current
- 10nV/√Hz low noise at 1kHz
- -40°C to 125°C operating temperature range
- MSOP8 (VSP8) package
Applications
- Audio amplifiers
- Hi-side current sensing
- Buffering

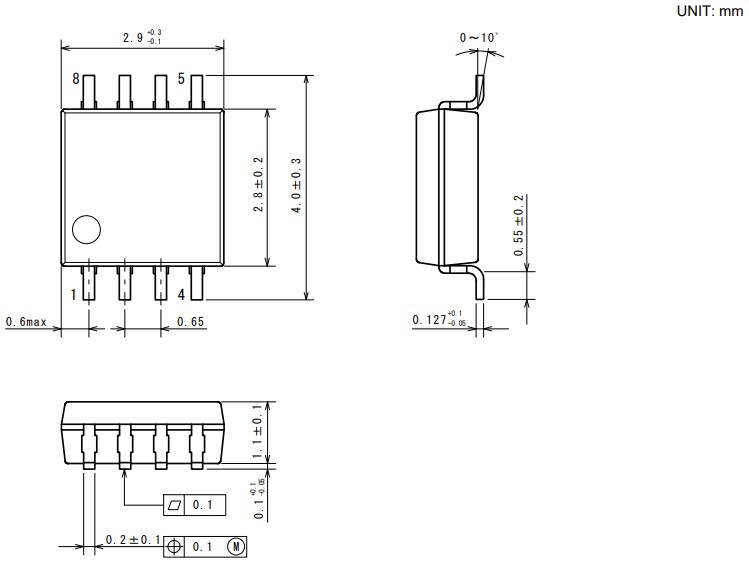

Package Dimensions
Additional Resource
