Nisshinbo NJW4750-T1 Quad Channel Combination Regulators

Nisshinbo NJW4750-T1 Quad Channel Combination Regulators include one wide input buck converter and three secondary synchronous buck converters/LDOs. A selectable Ch.3 can be designated to the synchronous buck converter or LDO modes. Anti-phase operation (between Ch.1 and Ch.2/3) reduces EMI noise. Every Nisshinbo NJW4750-T1 Quad Channel Combination Regulator features an individual enable pin and power-good pin, providing a flexible power-on sequence configuration. Two types of over-current protection and a new overcurrent detection method provide added safety and contribute to inductor miniaturization. The small 3.4mm × 2.6mm QFN packaged regulators are ideal for small applications, such as camera modules, photoelectric sensors, and more.

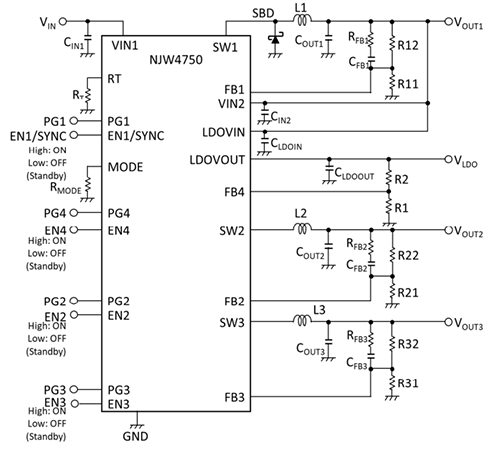

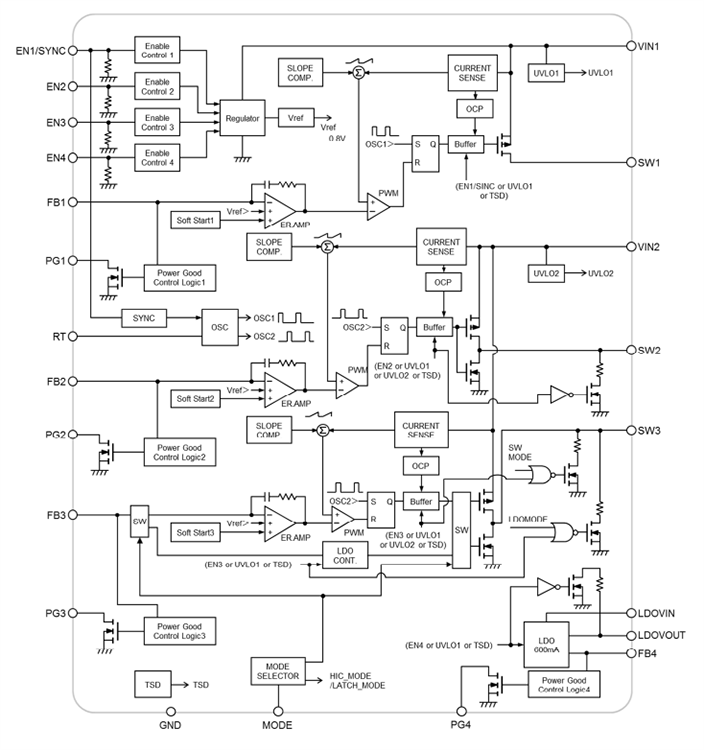

Features

Included regulators
- Wide input range 1.2A buck converter
- Low voltage 0.6A synchronous buck converter
- Selectable regulator
  - Low voltage 0.6A synchronous buck converter
  - Low voltage 0.3A LDO
- Low voltage 0.3A LDO
Wide operating input voltage range
- 3.9V (UVLO ON: 3.35V) to 40V (Ch.1)
- 2.4V to 5.5V (Ch.2, Ch.3, Ch.4)
Current
- 2.3mA input
- 600mA output
Free power-on sequence
- Individual Power-Good Function
- Individual Standby Function

Protections
- UVLO (Under Voltage Lockout)
- Over current protection function for more safety operation (Hiccup or Latch)
- Thermal shutdown
280kHz to 2.4MHz oscillating frequency range
External clock synchronization
Anti-phase operation between Ch.1 and Ch.2/3
Current mode control buck converters
Built-in compensation circuit
Soft start function
-40°C to +125°C operating temperature range
3.4mm x 2.6mm, EQFN26-HH package
Halogen-free and RoHS compliant
