Quantic X-Microwave Power Products

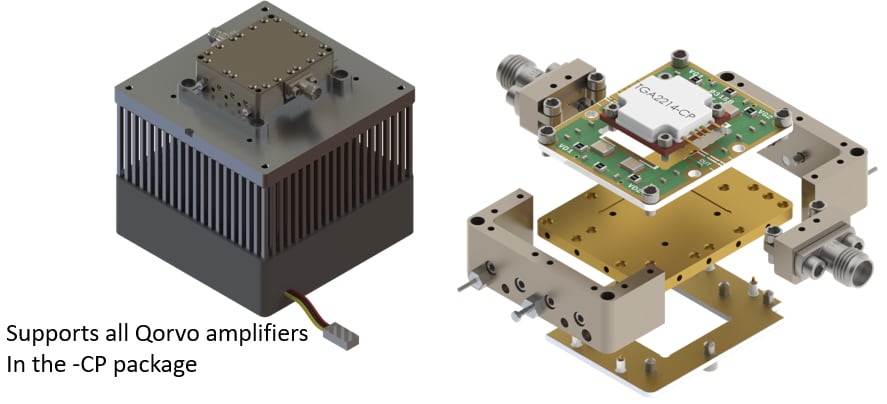

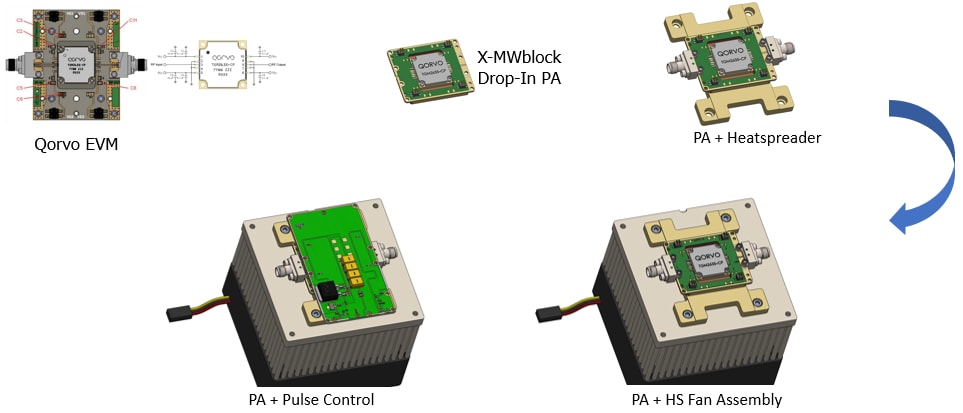

Quantic X-Microwave Power Products are part of the X-Microwave System for RF and Microwave design. The Quantic Power Products feature a modular concept (X-MWblock PA drop-in with drain pulsing). The devices support all Qorvo amplifiers in the -CP package.
Features
- XM-A5T7-0804D
- Low-frequency 400MHz
- High-frequency 410MHz
- Gain 20.5dB
- NF 6.5dB
- P1dB 31.5dBm
- IP3 49dBm
- XM-A641-0804D
- Low-frequency 5500MHz
- High-frequency 18000MHz
- Gain 22dB
- P1dB 24dBm
- PSat 25.5dBm
- IP3 35dBm
- XM-A647-0506D
- Low-frequency 5500MHz
- High-frequency 8500MHz
- Gain 28dB
- P1dB 36dBm
- PSat 36.5dBm
- IP3 44dBm

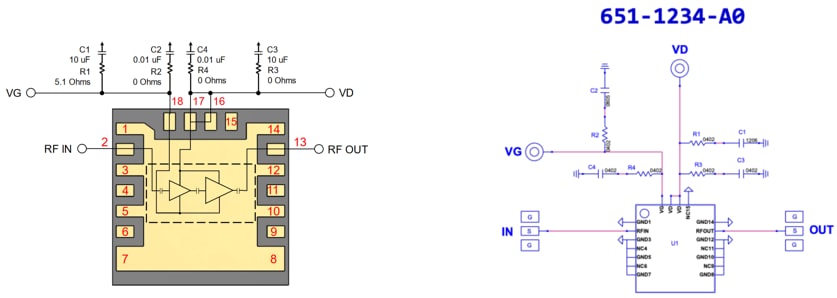

Evaluation Board and Application Circuit
QPA2213 Power Amplifier
