Texas Instruments TPS6522005-EP PMICs

Texas Instruments TPS6522005-EP Power Management Integrated Circuit (PMIC) is designed to supply a wide range of SoCs in portable and stationary applications. This PMIC provides three step-down converters and four linear regulators. The TPS6522005-EP PMIC functions at -55°C to 125°C ambient temperature range, which makes PMIC an excellent choice for various industrial automotive applications. The PMIC converter needs a small 470nH inductor, 4.7µF input capacitance, and a minimum 10µF output capacitance per rail. The LDO1 and LDO2 support output currents of 400mA at a 0.6V to 3.4V output voltage range. The LDO3 and LDO4 support output currents of 300mA at a 1.2V to 3.3V output voltage range.

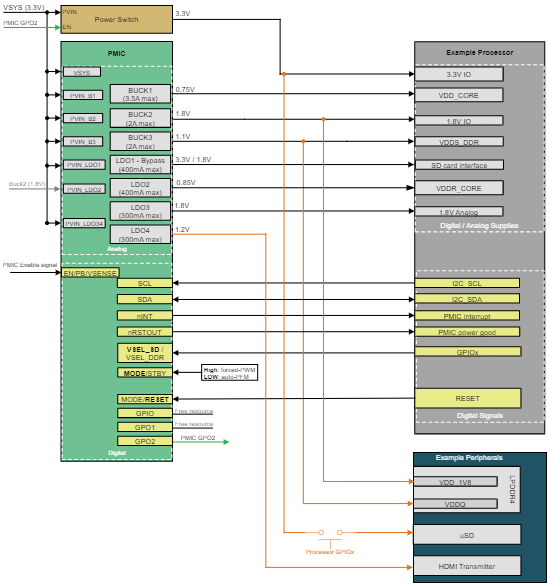

The TPS6522005-EP PMIC is ideally used for low-power industrial MPUs such as AM62x and AM64x with low ambient temperature support requirements. This IC also features an I²C interface, IOs, GPIOs, and Multi-Function Pins (MFP) that allow a seamless interface to a wide range of SoCs. The TPS6522005-EP PMIC devices have gold bond wires, a temperature range of -55°C to 105°C, and an SnPb lead finish.

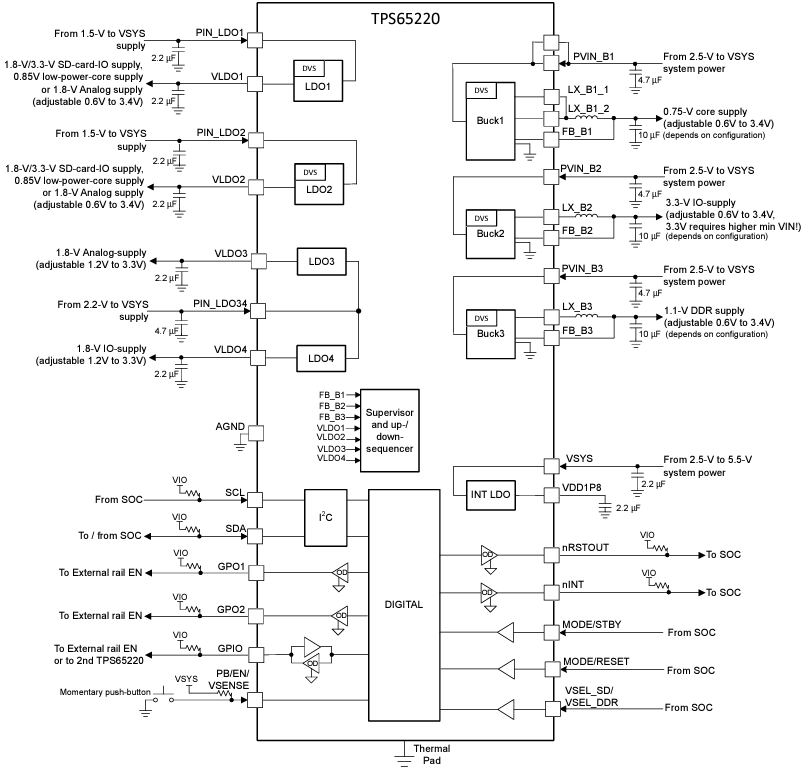

Features

Supports defense, aerospace, and medical applications
Dynamic voltage scaling on all three buck converters
Low IQ/PFM, PWM-mode (quasi-fixed frequency), or fixed frequency mode
Programmable power sequencing and default voltages
I²C interface, supporting standard, fast-mode, and fast-mode+
Designed to support systems with 14+ rails (2x TPS6522005-EP devices in multi-PMIC configuration)
2 GPOs, 1 GPIO, and 3 multi-function-pins
EEPROM programmability

Functional safety capable
Controlled baseline
One assembly/test site
One fabrication site
Extended product life cycle
Extended product-change notification
Product traceability

Specifications

3 buck converters at up to 2.3MHz switching frequency:
- 1x V_IN:
  - 2.5V to 5.5V
  - I_OUT: 3.5A
  - V_OUT 0.6V to 3.4V
- 2x V_IN:
  - 2.5V to 5.5V
  - I_OUT: 2A
  - V_OUT 0.6V to 3.4V

4 linear regulators:
- 2x V_IN:
  - 1.5V to 5.5V
  - I_OUT: 400mA
  - V_OUT: 0.6V to 3.4V (configurable as load switch and bypass mode, supporting SD card)
- 2x V_IN:
  - 2.2V to 5.5V
  - I_OUT: 300mA
  - V_OUT: 1.2V to 3.3V (configurable as load switch)
