Toshiba TCK10xG Load Switch ICs

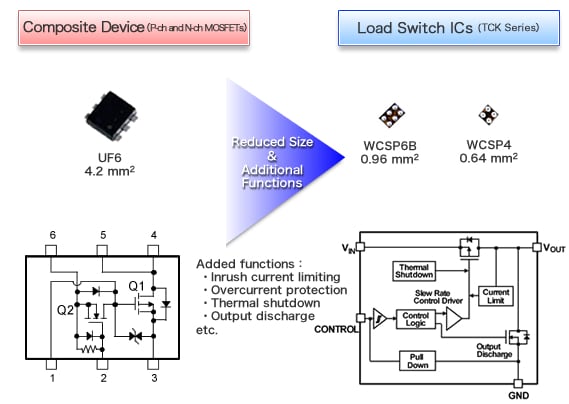

Toshiba TCK10xG Load Switch ICs feature low-voltage operation, low on-resistance, low current consumption, and a control input pin. These devices offer a wide operating voltage range of 1.1V to 5.5V and a low on-resistance of 55mΩ typical with inrush current reduction and thermal shutdown circuits. An auto discharge function and an overcurrent protection circuit are available on some versions. Those without overcurrent protection provide an output current of 1A, while those with overcurrent protection are offered with output currents of 0.2A, 0.5A, and 0.8A. Toshiba TCK10xG Load Switch ICs are available in ultra-small WCSP6B with a lead pitch of 0.4mm and WCSP4, making them ideal for applications that require high-density assembly such as portable devices.
