Weidmuller maxGuard Electronic Load Monitoring
Weidmuller maxGuard Electronic Load Monitoring offer high-performance and potential distribution in one complete solution. These electronic load monitoring feature a 24VDC control voltage, increase safety against failure, and reduce space required on the terminal rail by 50%. The maxGUARD electronic load monitoring are fail-safe and maintenance-friendly control voltage distributions.
Features
- Each ELM of maxGUARD is a solid-state overcurrent protector
- Main voltage is applied in the Feed-In Module (FIM), which spreads the current through up and down cross-connectors to Electronic Load Monitors (ELM)
- Reset of a trip condition can be made locally (push-button on the ELM)
- ELM can be connected directly to a load or can increase the number of connections with terminal blocks and intermediated cross-connectors
- The ELM can also inform their status (tripped or not) to the Feed-In Module (FIM)
- 2A controlled Feed-In Module (FIM-C) can generate a remote alarm and can reset the ELM remotely
- Can be used in a customised way

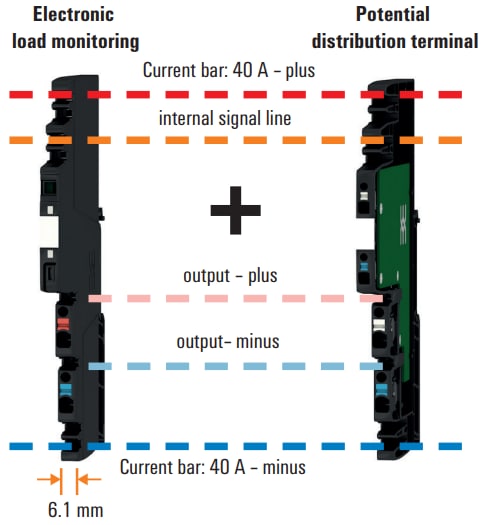

Combination of Load Monitoring and Potential Distribution
