YAGEO HHV Metal Glazed Through-Hole Film Resistors
YAGEO HHV Metal Glazed Through-Hole Film Resistors are thick film resistors with high voltage and ohmic capacities. The resistors feature an improved resistance to high temperature and humidity and a flameproof coating equivalent to UL 94V-0 standards. The HHV series operates with up to a 68MΩ resistance, a 7KVDC working voltage, and a 14KVDC overload voltage capability. The YAGEO HHV Metal Glazed Through-Hole Film Resistors are RoHS compliant and ideal for power, home appliance, and industrial applications.
Features
- Metal-glazed thick film resistors
- High voltage and ohmic capacity
- Improved resistance to high temperature and humidity
- UL 1676, VDE certified
- Flameproof coating equivalent to UL 94V-0 standard
- PPAP ready (HHV1WS)
- Halogen-free, RoHS compliant
Applications
- Power applications
- Home appliances
- Industrial
Specifications
- 0.25W to 3W power rating at +70°C
- 1.6KVDC to 7KVDC max working voltage range
- 3KVDC to 14KVDC max overload voltage range
- 100KΩ to 68MΩ resistance range
- ±200ppm/°C temperature coefficient rating
- -55°C to +155°C operating temperature range

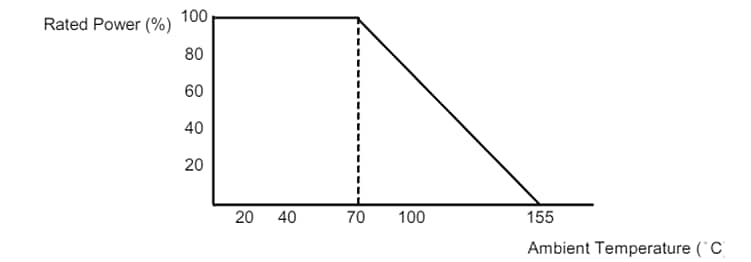

Power Derating Curve

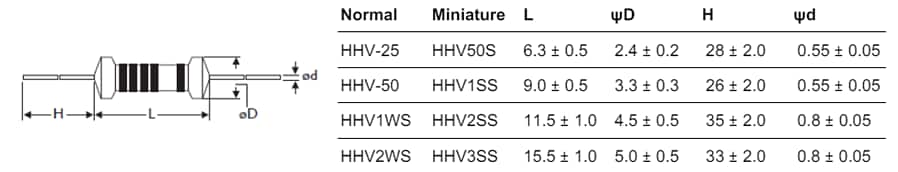

Dimensions (mm)
