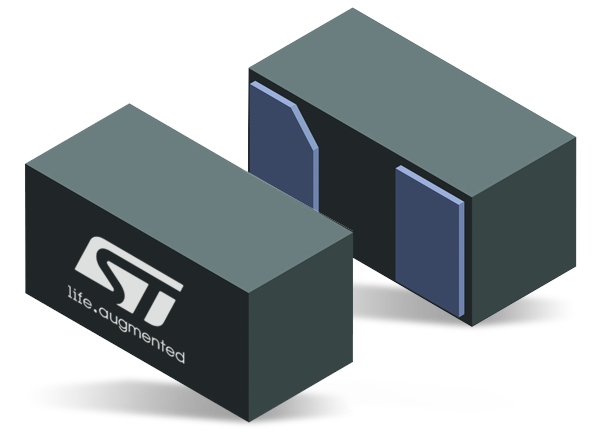

STMicroelectronics ESDZV18-1BF4 Bidirectional Single Line TVS Diode

STMicroelectronics​ ESDZV18-1BF4 Bidirectional Single Line TVS Diode is designed to protect the data line or other I/O ports against ESD transients. This single-line TVS diode features low clamping voltage, low leakage current, 0.18mm2 PCB area, and is compatible with 0201 package size. The ESDZV18-IBF4 TVS diode is ideal for smartphones, tablets, netbooks, digital cameras, communication, and highly integrated systems.

Features

  • Low clamping voltage
  • 6pF Low capacitance
  • Up to 7A 8/20µs peak pulse current
  • Efficient and robust
  • Easy design and PCB layout
  • System immunity against ESD
  • Smaller form factor with more functionalities
  • High-current absorption capability
  • Snapback technology

Applications

  • Smart watches
  • Fitness devices
  • Access control devices
  • Wireless speakers
  • PoS terminals
  • Active cables and connectors
  • Healthcare devices
  • Industrial sensors
  • Smartphones and portable devices
  • Wearables
  • Laptop and peripherals
